FMANOM1071
ActiveFairview Microwave
ANTENNA SMA PLUG 698 MHZ-2.7 GHZ
FMANOM1071
ActiveFairview Microwave
ANTENNA SMA PLUG 698 MHZ-2.7 GHZ
Description
General part information
FMANOM1071

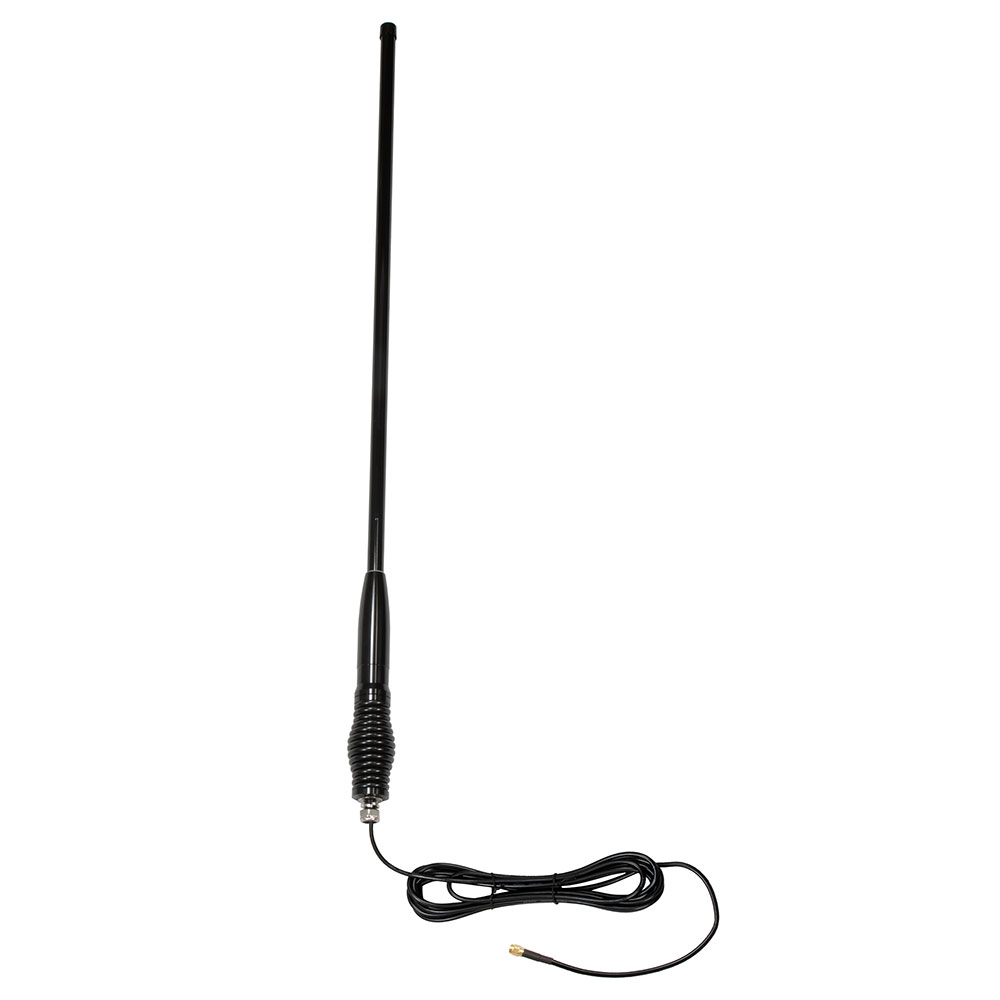

RF ANTENNA General Purpose Whip, Straight SMA Male Base Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANOM1071 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Features | 4.5m, Cable |
| Frequency (Center/Band) | 1.699 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 2.7 GHz |
| Frequency Range (Min) | 698 MHz |
| Gain | 6.5 dBi |
| Height (Max) | 41.46 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | General ISM |
| Termination Type | SMA Male |
| VSWR | 1.5 |
