MMF404422
ActiveMicro-Measurements (Division of Vishay Precision Group)
C5K-06-125LK-350-2R - STRAIN GAG
MMF404422
ActiveMicro-Measurements (Division of Vishay Precision Group)
C5K-06-125LK-350-2R - STRAIN GAG
Description
General part information
MMF404422

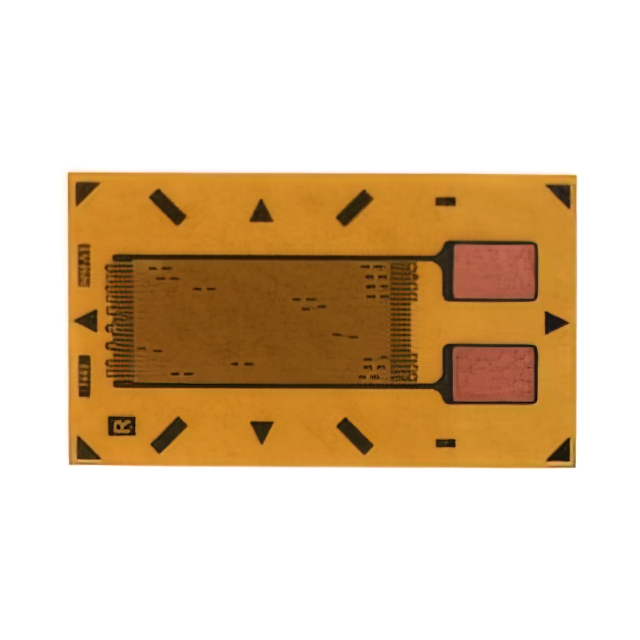

Linear Strain Gauge ±1.5% 0.125" (3.18mm) 0.065" (1.65mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404422 |
|---|---|
| Length - Active | 0.125 in |
| Length - Overall | 0.25 in |
| Length - Overall Pattern | 0.207 in |
| Length - Overall Pattern (mm) | 5.26 mm |
| Operating Temperature (Max) | 400 °F |
| Operating Temperature (Min) | -100 °F |
| Pattern Type | Linear |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range (Maximum) | 1.5 % |
| Strain Range (Minimum) | -1.5 % |
| Width - Active | 0.065 in |
| Width - Overall | 0.14 in |
| Width - Overall Pattern | 0.08 in |
