1277 SL002

Active

ALPHA WIRE

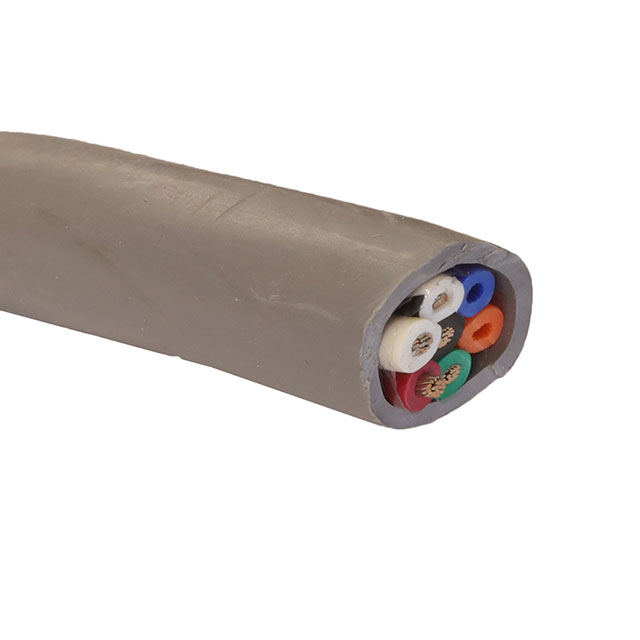

CABLE 7COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 14AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1277 SL002	1277 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [diameter]	0.0147 in	0.0147 in
Jacket (Insulation) Diameter [diameter]	0.635 in	0.635 in
Jacket (Insulation) Diameter [diameter]	16.13 mm	16.13 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm	1.6 mm
Jacket (Insulation) Thickness	0.063 in	0.063 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	7	7
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	13.5 AWG	13.5 AWG

CABLE 7COND 14AWG SLATE

Part	Conductor Insulation	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [diameter]	Conductor Strand [custom]	Length [x]	Length [x]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Voltage	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length	Length
ALPHA WIRE 1277 SL002	Poly-Vinyl Chloride (PVC)	7	Poly-Vinyl Chloride (PVC)	0.0147 in	19 Strands	500 '	152.4 m	Copper, Tinned	-20 C	80 C	Communication, Control	600 V	Slate	13.5 AWG	0.635 in	16.13 mm	1.6 mm	0.063 in	Multi-Conductor
ALPHA WIRE 1277 SL001	Poly-Vinyl Chloride (PVC)	7	Poly-Vinyl Chloride (PVC)	0.0147 in	19 Strands			Copper, Tinned	-20 C	80 C	Communication, Control	600 V	Slate	13.5 AWG	0.635 in	16.13 mm	1.6 mm	0.063 in	Multi-Conductor	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.81

General part information

7 Conductor Multi-Conductor Cable Slate 14 AWG 500.0' (152.4m)
