Description
General part information

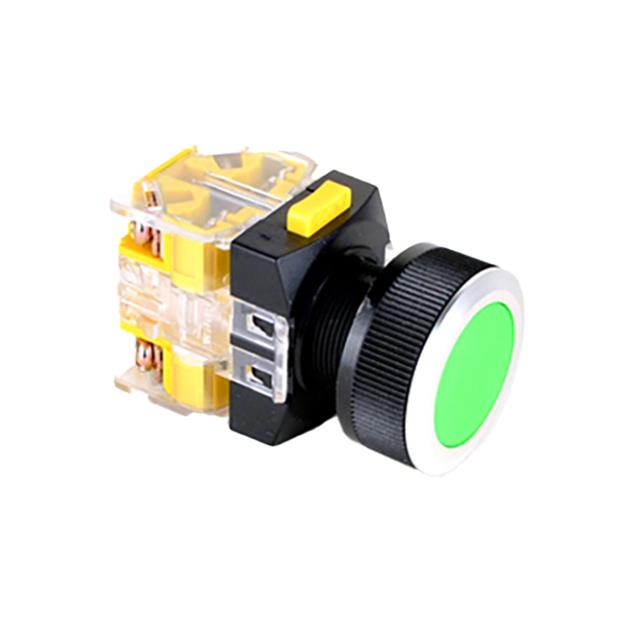

NF30-PMG11
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | NF30-PMG11 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Green |
| Current Rating | 6 A, 3 A |
| Electrical Life (Cycles) | 300000 |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Type | Standard |
