Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2966906 | 29669 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE, cULus, DNV, UL, EAC |
| Coil Current | 15.3 mA | 15.3 mA |
| Coil Resistance | 784.314 Ohms | 784 - 784.314 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 36 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO), Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 6 A | 6 - 50 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 ms |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29669 Series
POWER RELAY, SPDT, 12 VDC, 6 A, PLC SERIES, SOCKET, NON LATCHING
| Part | Coil Current | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Approval Agency | Coil Type | Relay Type | Switching Voltage | Coil Resistance | Contact Material | Features | Contact Rating (Current) | Termination Style | Release Time | Coil Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966906 | 15.3 mA | DIN Rail | -25 °C | 60 °C | SPDT (1 Form C) | CE, UKCA | Non Latching | General Purpose | 250 VAC, 250 VDC | 784.314 Ohms | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | 6 A | Screw Terminal | 8 ms | 12 VDC | 5 ms |
Phoenix Contact 2966919 | 15.3 mA | DIN Rail | -25 °C | 60 °C | SPDT (1 Form C) | cULus, DNV, EAC, UL | Non Latching | General Purpose | 30 VAC, 36 VDC | 784 Ohms | Gold (Au), Silver (Ag) | Lighted Indicator, Socket Included | 50 mA | Screw Terminal | 8 ms | 12 VDC | 5 ms |
Phoenix Contact 2966980 | DIN Rail | -25 °C | 60 °C | SPDT (1 Form C) | CE, UKCA | Non Latching | General Purpose | 30 VAC, 30 VDC | Silver Tin Oxide (AgSnO) | Socket Included | 6 A | Screw Terminal | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29669 Series

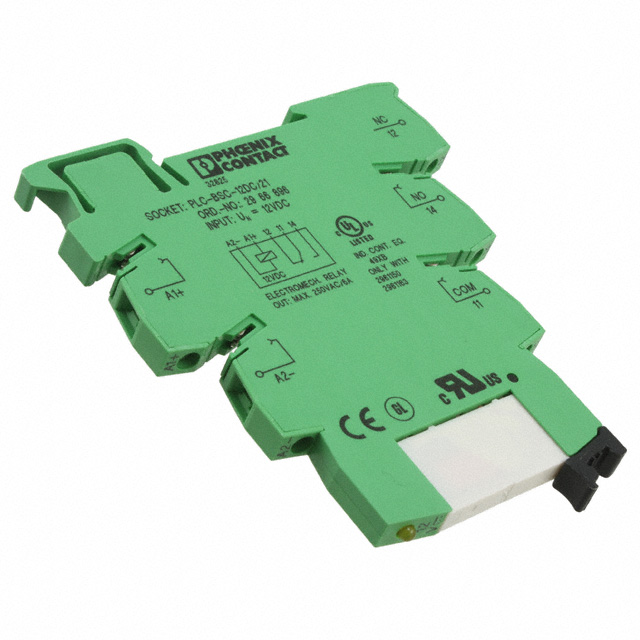

The 2966906 is a 1-pole PLC Interface with Power Contact Relay, universal version. SPST contact configuration, AgSnO2 contact. PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, 12VDC input voltage.
