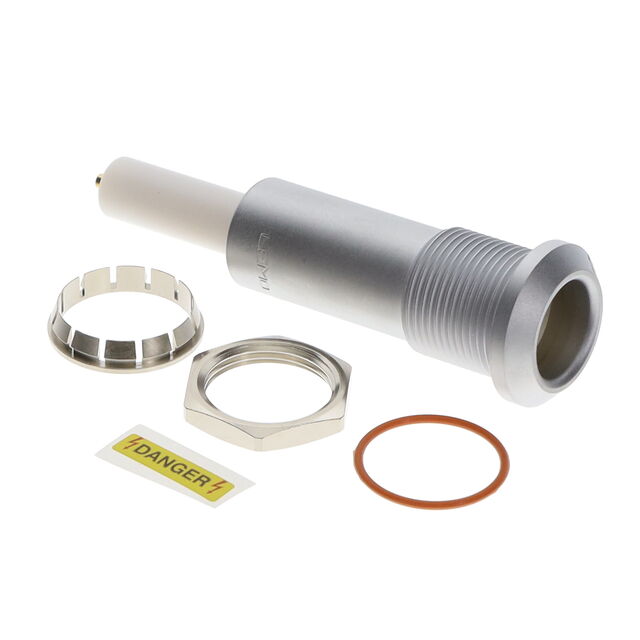

ERA.1Y.410.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.1Y.410.CTL	ERA.1Y Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	78.7 µin	59 - 78.7 Áin
Contact Finish Thickness - Mating	2 µm	1.5 - 2 Ám
Contact Material	Beryllium Copper	Brass, Beryllium Copper
Current Rating (Amps)	8 A	6 - 8 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	410	405 - 416

CONN RCPT MALE 1P GOLD SLDR CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Material	Backshell Material, Plating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Shell Finish	Contact Finish - Mating	Fastening Type	Mounting Feature	Connector Type	Insert Material	Number of Positions	Color	Current Rating (Amps)	Shell Material	Primary Material
LEMO ERA.1Y.410.CTA	230 °C	-55 °C	410	Brass	Brass, Chrome	Backshell	59 Áin	1.5 Ám	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Male Pins, Receptacle	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal
LEMO ERA.1Y.416.CLL37	230 °C	-55 °C	416	Beryllium Copper			78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	1	Silver	6 A	Brass	Metal
LEMO ERA.1Y.416.CLL	230 °C	-55 °C	416	Beryllium Copper			78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	1	Silver	6 A	Brass	Metal
LEMO ERA.1Y.410.CTL	230 °C	-55 °C	410	Beryllium Copper	Brass, Chrome	Backshell	78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal
LEMO ERA.1Y.405.CTL	230 °C	-55 °C	405	Beryllium Copper	Brass, Chrome	Backshell	78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
