1009166
ActivePhoenix Contact

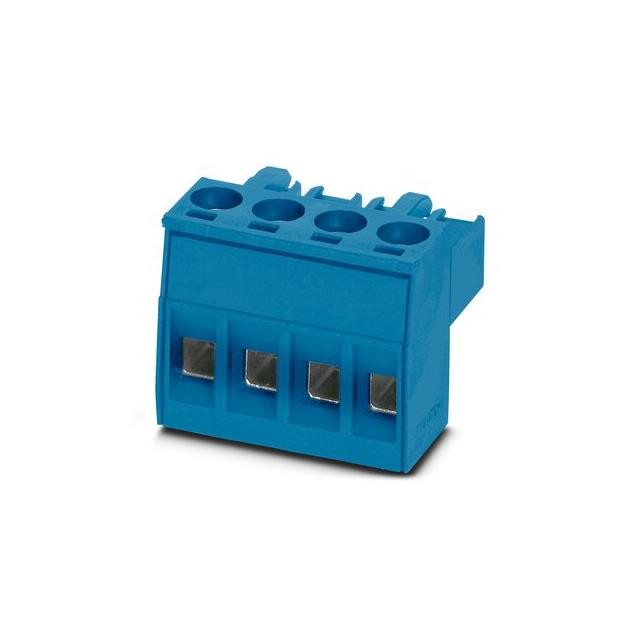

TERM BLOCK PLUG 4POS 5MM BLU
1009166
ActivePhoenix Contact
TERM BLOCK PLUG 4POS 5MM BLU
Description
General part information
1009166
4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1009166 |
|---|---|
| Color | Blue |
| Contact Mating Finish | Tin |
| Current - UL | 16 A |
| Features | Retention Latches (Non-Wire Side) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.197 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 4 |
| Termination Style | Screw - Rising Cage Clamp |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 30 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
