LED CBI 3MM 3X1 GRN/BLANK/BLUE

Find alt

Alpha

5640100209F

Active

DIALIGHT

LED CBI 3MM 3X1 GRN/BLANK/BLUE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5640100 Series

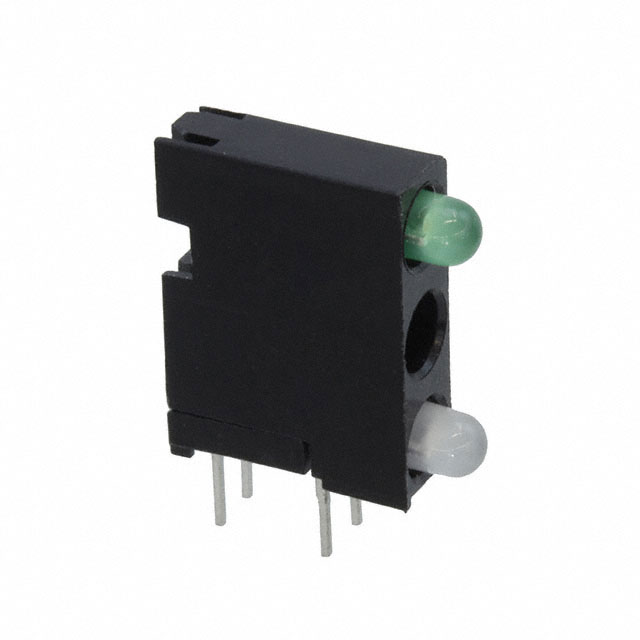

LED Circuit Board Indicator LED Circuit Board Indicator 3 High Blue (x 1), Green (x 1), Blank (x 1) Diffused 3.2V Blue, 2.1V Green 30mA Blue, 30mA Green Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	5640100209F

Color	Blue, Blank, Green
Color Count	1 count, 1 count, 1 count
Configuration	High
Configuration Count	3
Current (Blue)	30 mA
Current (Green)	30 mA
Current Colors	Blue, Green
Lens Size	3 mm
Lens Size (Code)	T-1
Lens Style	Round, Domed Top
Lens Type	Diffused
Millicandela Rating (Blue)	57 mcd
Millicandela Rating (Green)	12.6 mcd
Millicandela Rating Colors	Blue, Green
Mounting Type	Through Hole, Right Angle
Viewing Angle (Blue)	100 °
Viewing Angle (Green)	60 °
Voltage Rating	3.2V Blue, 2.1V Green
Voltage Rating	3.2 V, 2.1 V
Wavelength - Peak (1)	468 nm
Wavelength - Peak (2)	565 nm

5640100 Series

Part	Lens Type	Current (Red)	Current Colors	Current (Green)	Wavelength - Peak (1)	Wavelength - Peak (2)	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Lens Size	Lens Size (Code)	Mounting Type	Color	Color Count	Configuration Count	Configuration	Voltage Rating (Green)	Voltage Rating - Color	Voltage Rating (Red)	Viewing Angle	Lens Style	Millicandela Rating (Blue)	Millicandela Rating (Yellow)	Voltage Rating	Voltage Rating	Current (Blue)	Current (Yellow)	Wavelength - Peak (3)	Wavelength - Peak	Current	Millicandela Rating	Voltage Rating (Yellow)
DIALIGHT 5640100121F	Diffused	30 mA	Green Red	30 mA	565 nm	635 nm	Green Red	12.6 mcd	10 mcd	3 mm	T-1	Right Angle Through Hole	Green Red	1 count 2 count	3	High	2.1 V	Green Red	2 V	60 °	Domed Top Round
DIALIGHT 5640100822F	Clear		Blue Green Yellow	20 mA	470 nm	523 nm	Blue Green Yellow	495 mcd		3 mm	T-1	Right Angle Through Hole	Blue Green Yellow	1 count 1 count 1 count	3	High				30 ° 45 ° 56 °	Domed Top Round	210 mcd	320 mcd	2V Yellow 3.5V Blue 3V Green	2 V 3 V 3.5 V	30 mA	30 mA	588 nm
DIALIGHT 5640100814F	Diffused Tinted									3 mm	T-1	Right Angle Through Hole	Green	3 count	3	High				60 °	Domed Top Round				2.1 V				565 nm	20 mA	12.6 mcd
DIALIGHT 5640100322F	Diffused		Green Yellow	30 mA	565 nm	585 nm	Green Yellow	12.6 mcd		3 mm	T-1	Right Angle Through Hole	Green Yellow	1 count 2 count	3	High	2.1 V	Green Yellow		60 °	Domed Top Round		10 mcd				20 mA					2.1 V
DIALIGHT 5640100211F	Diffused	30 mA	Green Red	30 mA	565 nm	635 nm	Green Red	12.6 mcd	10 mcd	3 mm	T-1	Right Angle Through Hole	Green Red	1 count 2 count	3	High	2.1 V	Green Red	2 V	60 °	Domed Top Round
DIALIGHT 5640100777F	Diffused Tinted											Right Angle Through Hole	Orange	3 count	3	High				60 °					2.2 V				600 nm	10 mA	7 mcd
DIALIGHT 5640100231F	Diffused	30 mA	Green Red Yellow	30 mA	565 nm	635 nm	Green Red Yellow	12.6 mcd	10 mcd	3 mm	T-1	Right Angle Through Hole	Green Red Yellow	1 count 1 count 1 count	3	High	2.1 V	Green Red Yellow	2 V	60 °	Domed Top Round		10 mcd				20 mA	585 nm				2.1 V
DIALIGHT 5640100826F	Clear		Blue Green Yellow	20 mA	470 nm	523 nm	Blue Green Yellow	495 mcd		3 mm	T-1	Right Angle Through Hole	Blue Green Yellow	1 count 1 count 1 count	3	High				30 ° 45 ° 56 °	Domed Top Round	210 mcd	320 mcd	2V Yellow 3.5V Blue 3V Green	2 V 3 V 3.5 V	30 mA	30 mA	588 nm
DIALIGHT 5640100311F	Diffused	30 mA	Red Yellow		635 nm	585 nm	Red Yellow		10 mcd	3 mm	T-1	Right Angle Through Hole	Red Yellow	1 count 2 count	3	High		Red Yellow	2 V	60 °	Domed Top Round		10 mcd				20 mA					2.1 V
DIALIGHT 5640100321F	Diffused	30 mA	Green Red Yellow	30 mA	565 nm	635 nm	Green Red Yellow	12.6 mcd	10 mcd	3 mm	T-1	Right Angle Through Hole	Green Red Yellow	1 count 1 count 1 count	3	High	2.1 V	Green Red Yellow	2 V	60 °	Domed Top Round		10 mcd				20 mA	585 nm				2.1 V
