9421 0601000

Active

Belden Inc.

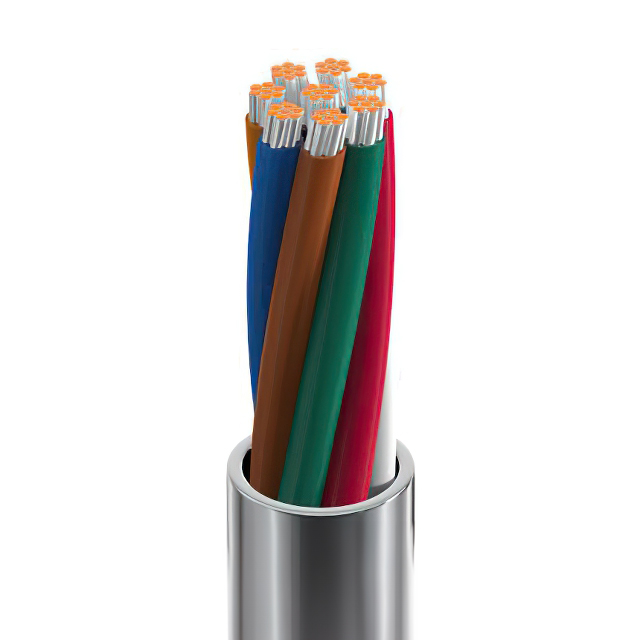

CABLE 8COND 22AWG CHROME 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 8COND 22AWG CHROME 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	9421 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.82 mm
Jacket (Insulation) Diameter [diameter]	0.229 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Usage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Number of Conductors	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length [x]	Length [x]
Belden Inc. 9421 0605000	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	5.82 mm	0.229 in	22 AWG	Chrome	Poly-Vinyl Chloride (PVC)	8	Copper Tinned	7	30 AWG	UL Style 2576	Multi-Conductor	-20 C	80 C
Belden Inc. 9421 0601000	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	5.82 mm	0.229 in	22 AWG	Chrome	Poly-Vinyl Chloride (PVC)	8	Copper Tinned	7	30 AWG	UL Style 2576	Multi-Conductor	-20 C	80 C	1000 ft	304.8 m
Belden Inc. 9421 060U1000	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	5.82 mm	0.229 in	22 AWG	Chrome	Poly-Vinyl Chloride (PVC)	8	Copper Tinned	7	30 AWG	UL Style 2576	Multi-Conductor	-20 C	80 C	1000 ft	304.8 m
Belden Inc. 9421 060U500	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	5.82 mm	0.229 in	22 AWG	Chrome	Poly-Vinyl Chloride (PVC)	8	Copper Tinned	7	30 AWG	UL Style 2576	Multi-Conductor	-20 C	80 C			500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Chrome 22 AWG 1000.0' (304.8m)
