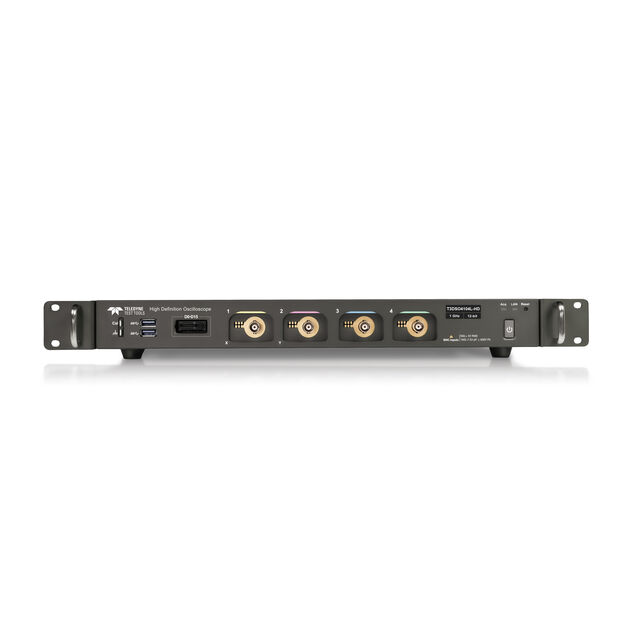

T3DSO4108L-HD
ActiveTeledyne LeCroy
1GHZ 10GS/S ESR 8CH 500MPTS/CH(S
T3DSO4108L-HD
ActiveTeledyne LeCroy
1GHZ 10GS/S ESR 8CH 500MPTS/CH(S
Description
General part information
T3DSO4108L-HD
1 GHz Bench Oscilloscopes USB Interface LCD - Color Display 8 Analog Channel 400V Record, Playback, Save, Trend
Technical Specifications
Parameters and characteristics for this part
| Specification | T3DSO4108L-HD |
|---|---|
| Analog Channels | 8 |
| Bandwidth | 1 GHz |
| Channel Types | Analog |
| Display Type | LCD - Color |
| Function | Record, Save, Trend, Playback |
| Includes | USB Cable, Passive Probes, Power Cord |
| Input Impedance (Capacitance) | 20 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Memory Size | 500 Mpts |
| Probe Type | Passive 1:1, 10:1 |
| Rise Time (Typ) | 350 ps |
| Sampling Rate (Per Second) | 5 GHz, 10 GHz |
| Type | Bench |
| Voltage - Input (Max) | 400 VDC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
