3-1123309-2
ActiveTE Connectivity AMP Connectors

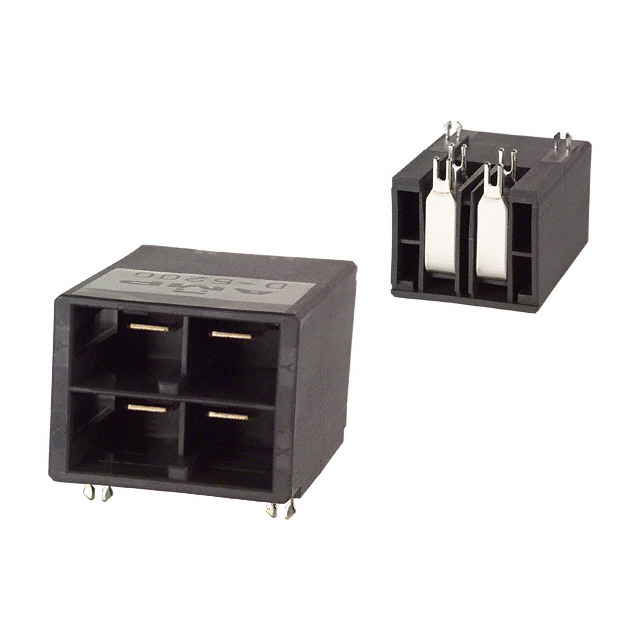

CONN HEADER R/A 4POS 10.16MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1123309-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 4POS 10.16MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1123309-2 | 1123309 Series |
|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Length - Post [x] | 0.15 in | 0.15 in |
| Contact Length - Post [x] | 3.81 mm | 3.81 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Current Rating (Amps) | 30 A | 30 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height [z] | 24.06 mm | 24.06 mm |
| Insulation Height [z] | 0.947 in | 0.947 in |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 4 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 10.16 mm | 10.16 mm |
| Pitch - Mating | 0.4 in | 0.4 in |
| Row Spacing - Mating | 10.16 mm | 10.16 mm |
| Row Spacing - Mating | 0.4 in | 0.4 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 630 V | 630 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.16 | |
| 15 | $ 5.37 | |||
| 105 | $ 4.98 | |||
1123309 Series
CONN HEADER R/A 4POS 10.16MM
| Part | Mounting Type | Style | Insulation Color | Contact Type | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish - Mating | Shrouding | Material Flammability Rating | Contact Shape | Number of Positions Loaded | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Insulation Material | Number of Rows | Contact Material | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1123309-2 | Through Hole, Right Angle | Board to Cable/Wire | Black | Tab | Header | 0.15 in | 3.81 mm | 105 ░C | -55 °C | 30 A | Gold | Shrouded - 4 Wall | UL94 V-0 | Rectangular | All | Detent Lock | 15 µin | 0.38 µm | Solder | Glass Filled, Polyester, Thermoplastic | 2 | Copper Alloy | 630 V | 10.16 mm | 0.4 in | Tin | 10.16 mm | 0.4 in | 24.06 mm | 0.947 in | General Purpose, Industrial | 4 |
TE Connectivity AMP Connectors 3-1123309-2 | Through Hole, Right Angle | Board to Cable/Wire | Black | Tab | Header | 0.15 in | 3.81 mm | 105 ░C | -55 °C | 30 A | Gold | Shrouded - 4 Wall | UL94 V-0 | Rectangular | All | Detent Lock | 15 µin | 0.38 µm | Solder | Glass Filled, Polyester, Thermoplastic | 2 | Copper Alloy | 630 V | 10.16 mm | 0.4 in | Tin | 10.16 mm | 0.4 in | 24.06 mm | 0.947 in | General Purpose, Industrial | 4 |
TE Connectivity AMP Connectors 2-1123309-2 | Through Hole, Right Angle | Board to Cable/Wire | Black | Tab | Header | 0.15 in | 3.81 mm | 105 ░C | -55 °C | 30 A | Gold | Shrouded - 4 Wall | UL94 V-0 | Rectangular | All | Detent Lock | 15 µin | 0.38 µm | Solder | Glass Filled, Polyester, Thermoplastic | 2 | Copper Alloy | 630 V | 10.16 mm | 0.4 in | Tin | 10.16 mm | 0.4 in | 24.06 mm | 0.947 in | General Purpose, Industrial | 4 |
Description
General part information
1123309 Series
Connector Header Through Hole, Right Angle 4 position 0.400" (10.16mm)
