HEE-046-M

Active

TE Connectivity AMP Connectors

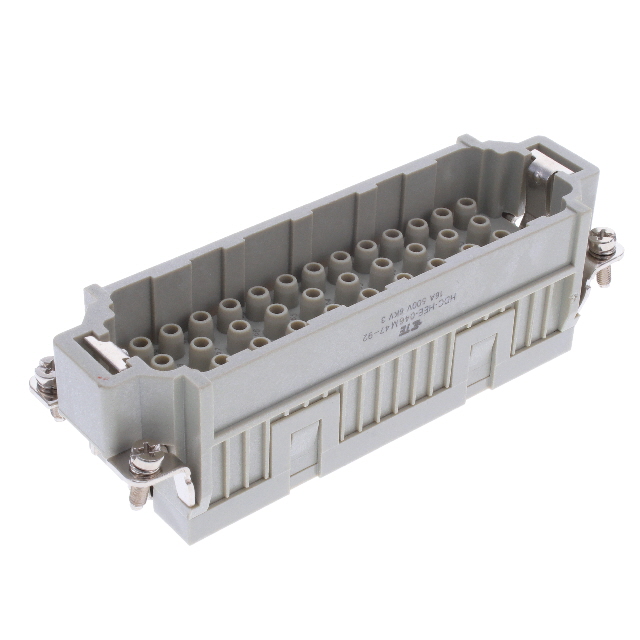

INSERT MALE 46POS+1GND HEE-046-M

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSERT MALE 46POS+1GND HEE-046-M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEE-046-M	HEE-046 Series

Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	CEM, DEM	CEM, DEM, CEF, DEF
Current Rating (Amps)	16 A	16 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	EN45545	EN45545
Number of Positions	46+Ground	46+Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	H24B	H24B
Termination Style	Crimp	Crimp
Voltage Rating	500 V	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

INSERT MALE 46POS+1GND HEE-046-M

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Termination Style	Current Rating (Amps)	Voltage Rating	Size	Housing Material	Connector Type	Contact Type	Gender
TE Connectivity AMP Connectors HEE-046-M	125 °C	-40 °C	46+Ground	EN45545	Crimp	16 A	500 V	H24B	Polycarbonate (PC)	Insert without Contacts	CEM, DEM	Male
TE Connectivity AMP Connectors HEE-046-F 47-92	125 °C	-40 °C	46+Ground	EN45545	Crimp	16 A	500 V	H24B	Polycarbonate (PC)	Insert without Contacts	CEF, DEF	Female

General part information

Male Insert without Contacts 46+Ground Position Crimp
