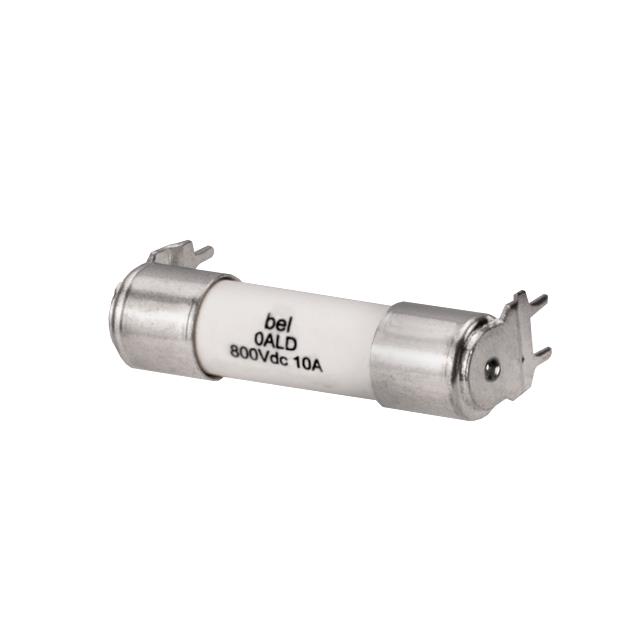

0ALDW9500-BE
ActiveBEL MAGNETIC SOLUTIONS
800V-RATED FUSE FOR EV/HEV ACCES
Deep-Dive with AI
Search across all available documentation for this part.
0ALDW9500-BE
ActiveBEL MAGNETIC SOLUTIONS
800V-RATED FUSE FOR EV/HEV ACCES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ALDW9500-BE |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity @ Rated Voltage | 50 kA |
| Current Rating (Amps) | 50 A |
| DC Cold Resistance | 0.0016 Ohms |
| Fuse Type | Cartridge |
| Melting I˛t | 3250 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension [diameter] | 11.5 mm |
| Size / Dimension [diameter] | 0.453 " |
| Size / Dimension [x] | 39.26 mm |
| Size / Dimension [x] | 1.546 in |
| Voltage Rating - DC | 750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 10.74 | |
Description
General part information
0ALDW9500-BE
50A 750 VDC Fuse Cartridge Through Hole
Documents
Technical documentation and resources
No documents available
