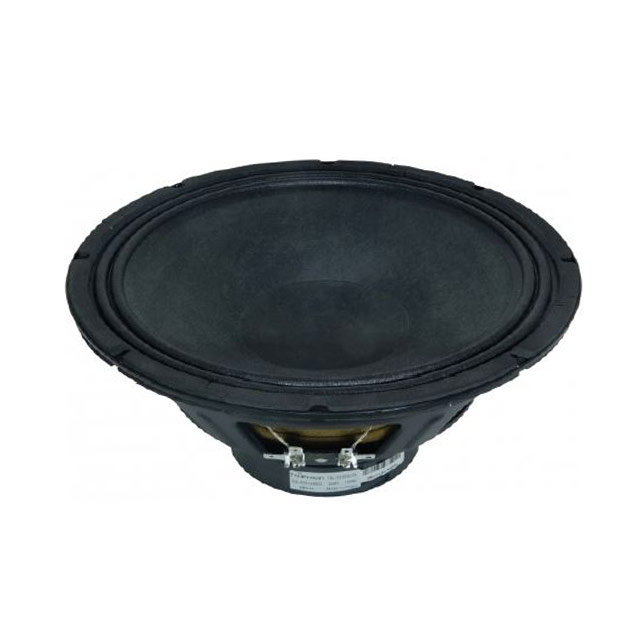

FSL-1015R02-08M
ActivePeerless by Tymphany
SPEAKR 7.01OHM 150W TOP 94.1DB
FSL-1015R02-08M
ActivePeerless by Tymphany
SPEAKR 7.01OHM 150W TOP 94.1DB
Description
General part information
FSL-1015R02-08M
7.01 Ohms Woofer Speaker 150 W 70 Hz ~ 700 Hz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | FSL-1015R02-08M |
|---|---|
| Efficiency - dBA | 94.1 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 68.41 Hz |
| Frequency Range (Max) | 700 Hz |
| Frequency Range (Min) | 70 Hz |
| Height - Seated (Max) | 0.272 in |
| Impedance | 7.01 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 150 W |
| Shape | Round |
| Size / Dimension Diameter | 10.122 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Woofer |
