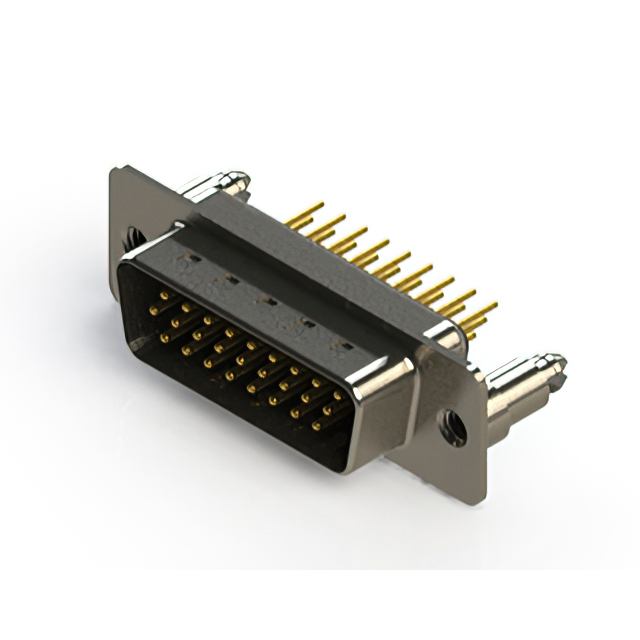

637-M26-630-BT5

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-M26-630-BT5

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-M26-630-BT5

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

637-M26 Series

Part	Contact Type	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Flange Feature	Number of Positions	Current Rating (Amps)	Contact Finish	Material Flammability Rating	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Color	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 637-M26-332-BT3	Signal	Copper Alloy	Grounding Indents Shielded	15 µin	0.38 µm	D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Free Hanging (In-Line)	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C
EDAC Inc. 637-M26-630-BT4	Signal	Copper Alloy	Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Through Hole	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C	Solder
EDAC Inc. 637-M26-232-BT1	Signal	Copper Alloy	Grounding Indents Shielded			D-Sub High Density	Housing/Shell (Unthreaded)	26	5 A	Gold	UL94 V-0	Free Hanging (In-Line)	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C		Flash
EDAC Inc. 637-M26-630-BN2	Signal	Copper Alloy	Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Through Hole	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C	Solder		Nickel Plated Steel
EDAC Inc. 637-M26-632-BN1	Signal	Copper Alloy	Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (Unthreaded)	26	5 A	Gold	UL94 V-0	Free Hanging (In-Line)	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C			Nickel Plated Steel
EDAC Inc. 637-M26-630-BT1	Signal	Copper Alloy	Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (Unthreaded)	26	5 A	Gold	UL94 V-0	Through Hole	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C	Solder
EDAC Inc. 637-M26-232-BT2	Signal	Copper Alloy	Grounding Indents Shielded			D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Free Hanging (In-Line)	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C		Flash
EDAC Inc. 637-M26-230-BN5	Signal	Copper Alloy	Board Lock Grounding Indents Shielded			D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Through Hole	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C	Solder	Flash	Nickel Plated Steel
EDAC Inc. 637-M26-630-BT5	Signal	Copper Alloy	Board Lock Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Through Hole	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C	Solder
EDAC Inc. 637-M26-632-BN3	Signal	Copper Alloy	Grounding Indents Shielded	30 Áin	0.76 Ám	D-Sub High Density	Housing/Shell (4-40)	26	5 A	Gold	UL94 V-0	Free Hanging (In-Line)	2	(DA A) High Density	Polyamide (PA9T) Nylon 9T	Black	3	Male Pins Plug	-55 °C	125 °C			Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 7.17
Newark	Each	500	$ 13.44

Description

General part information

637-M26 Series

26 Position D-Sub, High Density Plug, Male Pins Connector
