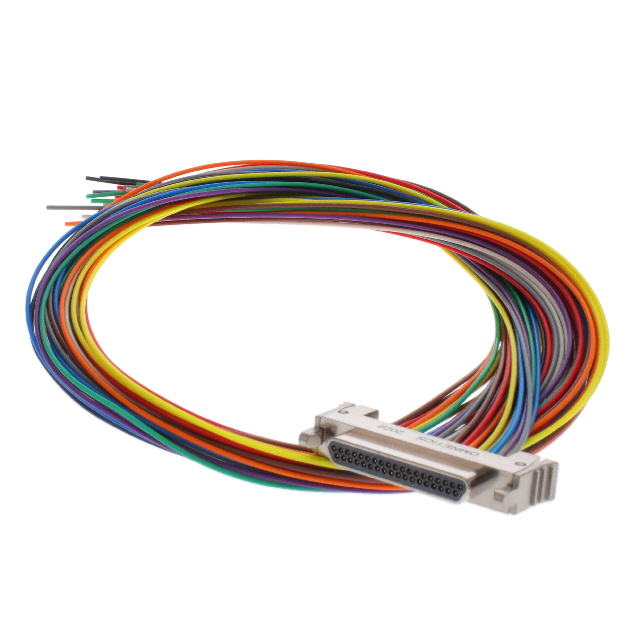

LMDP-037-N50-WD6Q18.0-1-RH
ActiveOmnetics
CABLE ASSY D-MIC-D 37P 457.2MM
Deep-Dive with AI
Search across all available documentation for this part.
LMDP-037-N50-WD6Q18.0-1-RH
ActiveOmnetics
CABLE ASSY D-MIC-D 37P 457.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMDP-037-N50-WD6Q18.0-1-RH |
|---|---|
| 1st Connector | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads |
| Color | Ribbon, Multiple |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 37 |
| Shielding | Unshielded |
| Type | D-Type, Micro-D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 270.55 | |
Description
General part information
LMDP-037-N50-WD6Q18.0-1-RH
D-Sub Cable Assembly D-Type, Micro-D Multiple, Ribbon 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
Documents
Technical documentation and resources
No documents available
