6355-0003-02
ActiveEncitech Connectors AB

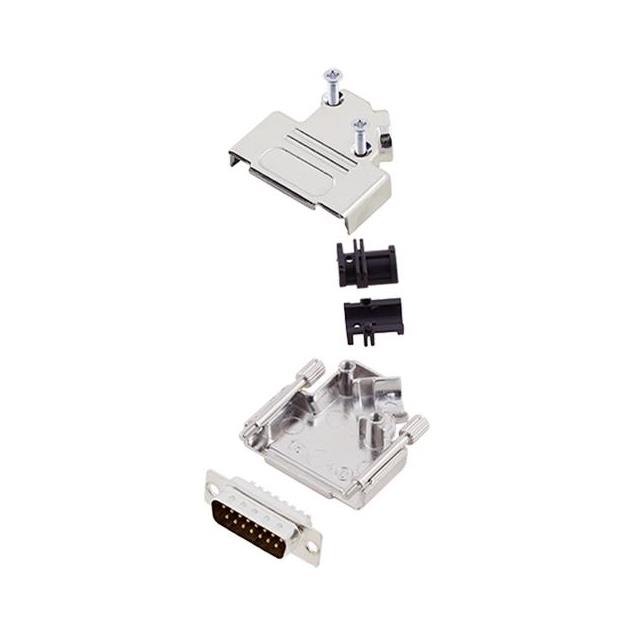

D-SUB BACKSHELL, FULL METAL, 45
6355-0003-02
ActiveEncitech Connectors AB
D-SUB BACKSHELL, FULL METAL, 45
Description
General part information
6355-0003-02
15 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 6355-0003-02 |
|---|---|
| Color | Black |
| Connector Layout | A, DA |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Assembly, Grounding Indents |
| Finish | Tin Plated |
| Flange Feature | Cable Side (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 2 |
| Termination | Solder Cup |
