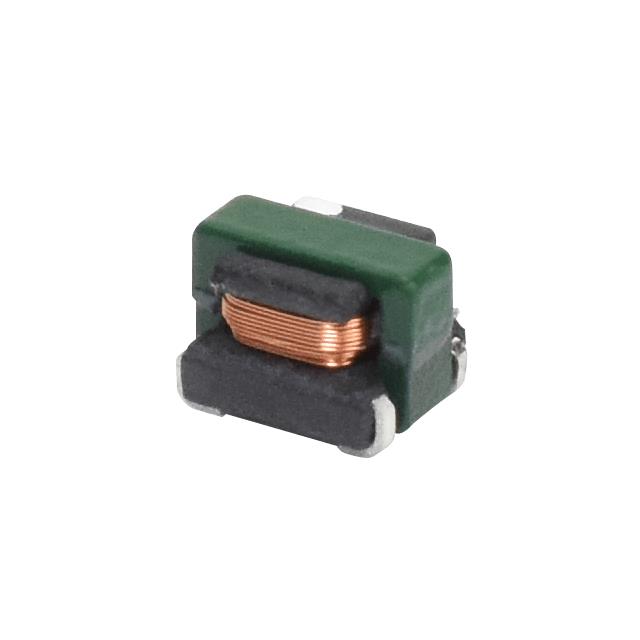

SCS-4-4-40T-TR
7 A 40:1 Current Sense Transformer 50kHz ~ 1MHz 3mOhm Primary, 1.6Ohm Secondary Max 132 µH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SCS-4-4-40T-TR |
|---|---|
| Current Rating | 7 A |
| DC Resistance (DCR) (Primary) | 3 mOhm |
| DC Resistance (DCR) (Secondary Max) | 1.6 Ohm |
| DC Resistance Type | Primary, Secondary Max |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.14 in |
| Inductance | 132 µH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.144 in |
| Termination Style | J Lead |
| Turns Ratio - Primary | 40 |
| Turns Ratio - Secondary | 1 |
| Type | Invasive |
