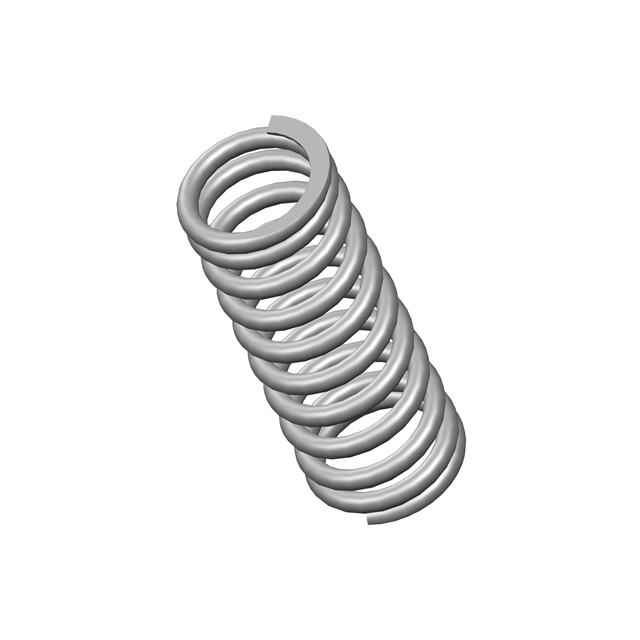

10599CS
ActiveCentury Spring Corp
COMP O= .718,L= 1.94,W= .0940
10599CS
ActiveCentury Spring Corp
COMP O= .718,L= 1.94,W= .0940
Description
General part information
10599CS
COMP O= .718,L= 1.94,W= .0940
Technical Specifications
Parameters and characteristics for this part
| Specification | 10599CS |
|---|---|
| Diameter - Inside | 0.53 in |
| Diameter - Outside | 0.718 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 1.94 in |
| Material | Spring Steel |
| Rate (lbs/in) | 54 lbs/in |
| Type | Compression |
| Wire Diameter | 0.094 in |
