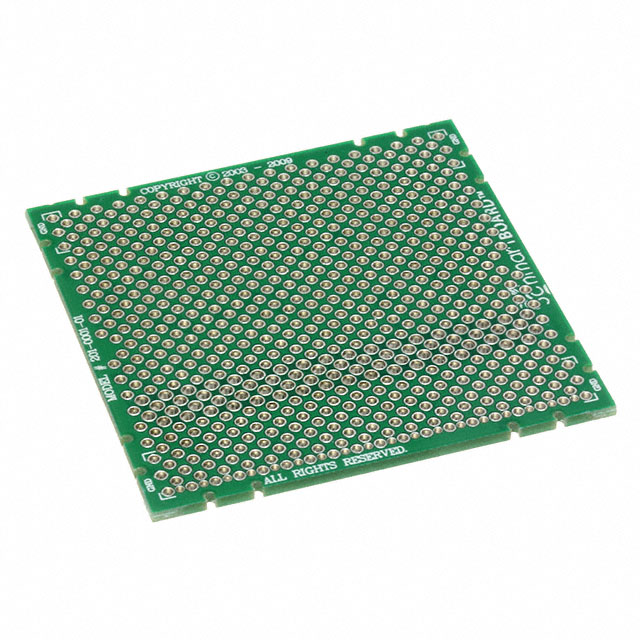

201-0002-01

Active

Schmartboard, Inc.

BREADBOARD GENERAL PURPOSE NPTH

Search across all available documentation for this part.

Active

Schmartboard, Inc.

BREADBOARD GENERAL PURPOSE NPTH

Technical Specifications

Parameters and characteristics for this part

BREADBOARD GENERAL PURPOSE NPTH

Part	Proto Board Type	Hole Diameter [diameter]	Hole Diameter [diameter]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Circuit Pattern	Pitch	Pitch	Plating
Schmartboard, Inc. 201-0002-01	Breadboard, General Purpose	0.024 in	0.61 mm	2 in	50.8 mm	2 in	50.8 mm	Pad Per Hole (Round)	0.039 in, 0.079 in, 1 mm, 2 mm	Grid	Non-Plated Through Hole (NPTH)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.00

General part information

Breadboard, General Purpose Non-Plated Through Hole (NPTH) Pad Per Hole (Round) 0.039" (1mm), 0.079" (2mm), Grid
