SJOOW1404-500

Active

Remington Industries

PORTABLE CORD 4COND 14AWG 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJOOW1404-500

Active

Remington Industries

PORTABLE CORD 4COND 14AWG 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1002.08

Description

General part information

SJOOW1404 Series

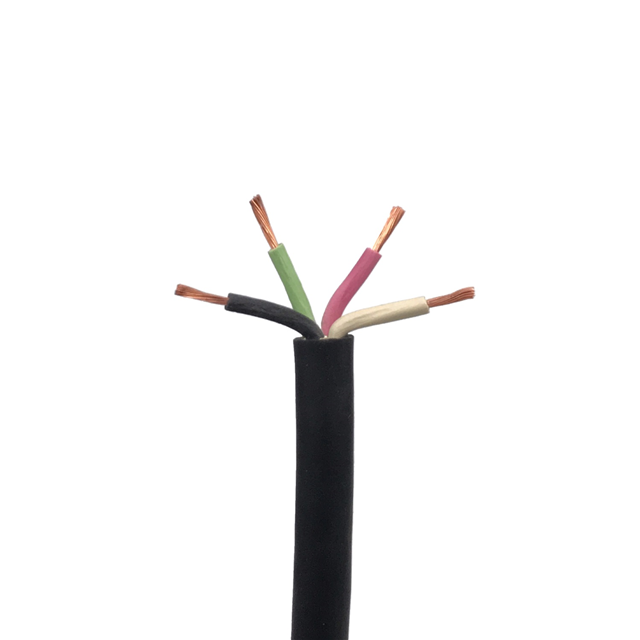

4 Conductor Portable Cord Cable Black 14 AWG 500.0' (152.4m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJOOW1404-500	SJOOW1404 Series

Cable Type	Portable Cord	Portable Cord
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	41	41
Conductor Strand [custom]	30 AWG	30 AWG
Features	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	10.41 mm	10.41 mm
Jacket (Insulation) Diameter [diameter]	0.41 in	0.41 in
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)	Chlorinated Polyethylene (CPE)
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	-	10 - 3000 "
Length	-	3.05 - 76.2 m
Length [x]	500 '	25 - 500 '
Length [x]	152.4 m	7.62 - 152.4 m
Number of Conductors	4	4
Operating Temperature	194 °F	194 °F
Ratings	UL Style SJOOW	UL Style SJOOW
Usage	Portable Power Tools and Equipment	Portable Power Tools and Equipment
Voltage	300 V	300 V
Wire Gauge	13.5 AWG	13.5 AWG

SJOOW1404 Series

PORTABLE CORD 4COND 14AWG 500'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Number of Conductors	Jacket Color	Operating Temperature	Usage	Ratings	Wire Gauge	Voltage	Cable Type	Length	Length
Remington Industries SJOOW1404-500	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)	500 '	152.4 m	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord
Remington Industries SJOOW1404-250	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)			Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord	3000 "	76.2 m
Remington Industries SJOOW1404-10	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)			Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord	10 ft	3.05 m
Remington Industries SJOOW1404-25	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)	25 ft	7.62 m	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord
Remington Industries SJOOW1404-100	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)	100 ft	30.5 m	Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord
Remington Industries SJOOW1404-50	10.41 mm	0.41 in	Chlorinated Polyethylene (CPE)	50 ft		Ethylene Propylene Terpolymer Rubber (EPDM)	0.762 mm	0.03 in	Copper, Bare	41	30 AWG	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	4	Black	194 °F	Portable Power Tools and Equipment	UL Style SJOOW	13.5 AWG	300 V	Portable Cord		15.24 m
