OPAA1OSL
ActiveDIALIGHT

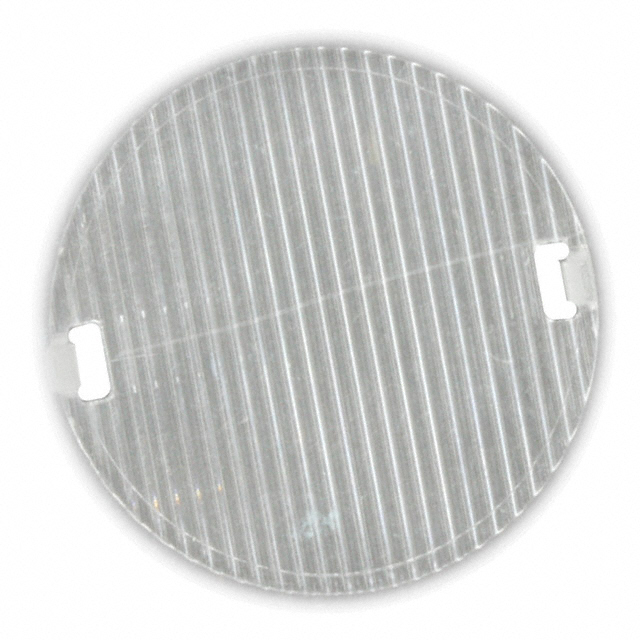

LENS CLR 8X54DEG ELLIP/OVAL SNAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPAA1OSL
ActiveDIALIGHT
LENS CLR 8X54DEG ELLIP/OVAL SNAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OPAA1OSL | OPAA1 Series |
|---|---|---|
| Color | Clear | Clear |
| For Use With/Related Manufacturer | Osram | Osram |
| Lens Size [diameter] | 26 mm | 26 mm |
| Lens Transparency | Diffused | Diffused |
| Material | Acrylic | Acrylic |
| Mounting Type | Snap-In | Snap-In |
| Number of LEDs | 1 | 1 |
| Optical Pattern | Elliptical/Oval | Elliptical/Oval, Wide |
| Type | Sub Lens, Lens | Sub Lens, Lens |
| Viewing Angle | - | 10 - 30 ° |
| Viewing Angle [custom] | 8 ° | 8 ° |
| Viewing Angle [custom] | 54 ° | 54 ° |
OPAA1 Series
LENS CLR 8X54DEG ELLIP/OVAL SNAP
| Part | Viewing Angle [custom] | Viewing Angle [custom] | Number of LEDs | Type | Mounting Type | Lens Transparency | Color | Material | Lens Size [diameter] | For Use With/Related Manufacturer | Optical Pattern | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT OPAA1OSL | 8 ° | 54 ° | 1 | Lens, Sub Lens | Snap-In | Diffused | Clear | Acrylic | 26 mm | Osram | Elliptical/Oval | |
DIALIGHT OPAA1WSL | 1 | Lens, Sub Lens | Snap-In | Diffused | Clear | Acrylic | 26 mm | Osram | Wide | 30 ° | ||
DIALIGHT OPAA1DF | 1 | Lens, Sub Lens | Snap-In | Diffused | Clear | Acrylic | 26 mm | Osram | 10 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.92 | |
| 10 | $ 0.58 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.41 | |||
Description
General part information
OPAA1 Series
Lens, Sub Lens Clear 8° x 54° Elliptical/Oval Snap-In
