A1AXB-2436G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC24B/AE24G/X
Deep-Dive with AI
Search across all available documentation for this part.
A1AXB-2436G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC24B/AE24G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1AXB-2436G | A1AXB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 24 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.95 | |
| 10 | $ 7.41 | |||
| 25 | $ 6.88 | |||
| 50 | $ 6.50 | |||
| 100 | $ 6.15 | |||
| 250 | $ 5.71 | |||
| 500 | $ 5.40 | |||
| 1000 | $ 5.10 | |||
A1AXB Series
IDC CABLE- ASC40B/AE40G/X
| Part | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions | Pitch - Cable | Pitch - Cable | Shielding | Cable Termination | Length [x] | Length [x] | Contact Finish | Number of Rows | Pitch - Connector | Pitch - Connector | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1AXB-4036G | 0.76 Ám | 30 Áin | Socket to Cable | 40 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors A1AXB-1436G | 0.76 Ám | 30 Áin | Socket to Cable | 14 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors A1AXB-1636G | 0.76 Ám | 30 Áin | Socket to Cable | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | 16 | ||
TE Connectivity AMP Connectors A1AXB-2636M | 0.76 Ám | 30 Áin | Socket to Cable | 26 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXB-2036G | 0.76 Ám | 30 Áin | Socket to Cable | 20 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors A1AXB-1436M | 0.76 Ám | 30 Áin | Socket to Cable | 14 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXB-3036G | 0.76 Ám | 30 Áin | Socket to Cable | 30 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors A1AXB-1636M | 0.76 Ám | 30 Áin | Socket to Cable | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | 16 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXB-5036M | 0.76 Ám | 30 Áin | Socket to Cable | 50 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXB-2436G | 0.76 Ám | 30 Áin | Socket to Cable | 24 | 0.05 " | 1.27 mm | Unshielded | IDC | 3 ft | 914.4 mm | Gold | 2 | 0.1 in | 2.54 mm |
Description
General part information
A1AXB Series

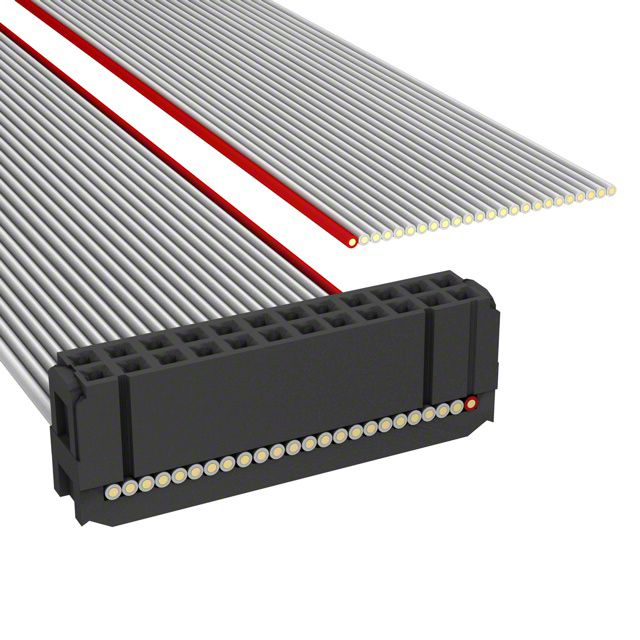

24 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
