CSA1-5P6E5-36.0G02
ActiveCinch Connectivity Solutions
CABLE ASSY D - MIC D 4P 914.4MM
CSA1-5P6E5-36.0G02
ActiveCinch Connectivity Solutions
CABLE ASSY D - MIC D 4P 914.4MM
Description
General part information
CSA1-5P6E5-36.0G02

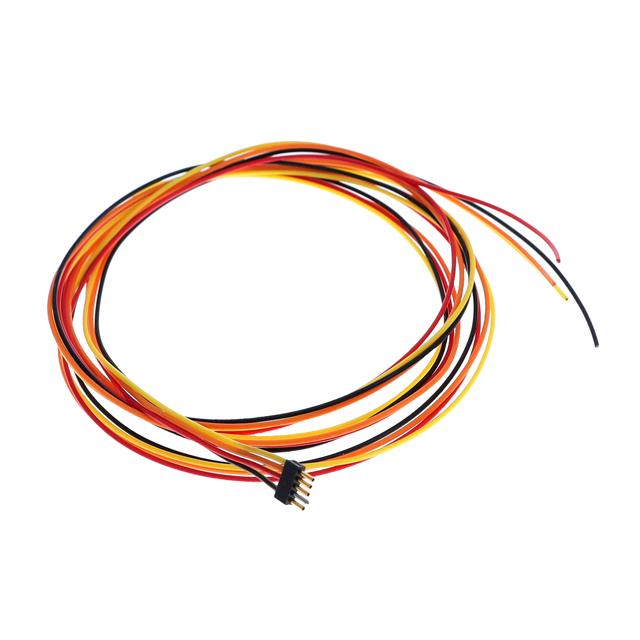

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Plug, Male Pins to Individual Wire Leads Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | CSA1-5P6E5-36.0G02 |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Individual Wire Leads |
| Color | Multiple, Individual |
| Contact Finish | Gold |
| Length | 3 ft |
| Number of Positions | 4 |
| Shielding | Unshielded |
| Type | Micro-D, D-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
