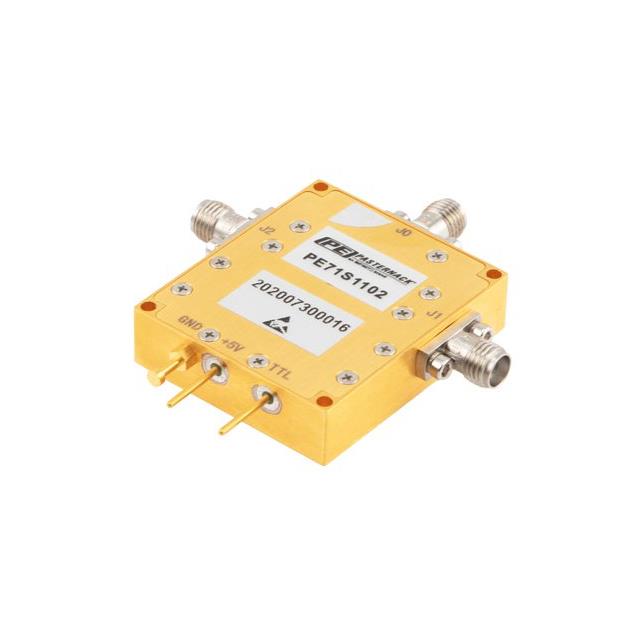

PE71S1102
ActivePasternack
REFLECTIVE SPDT GAN HIGH POWER P
PE71S1102
ActivePasternack
REFLECTIVE SPDT GAN HIGH POWER P
Description
General part information
PE71S1102
RF Switch IC VSAT SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S1102 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 0 Hz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.3 dB |
| Isolation | 35 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT |
| Test Frequency | 18 GHz |
| Topology | Reflective |
| Voltage - Supply | 5 VDC |
