30-02719
ActiveTensility International Corp
CBL 4CON 20AWG GRY BIO
30-02719
ActiveTensility International Corp
CBL 4CON 20AWG GRY BIO
Description
General part information
30-02719

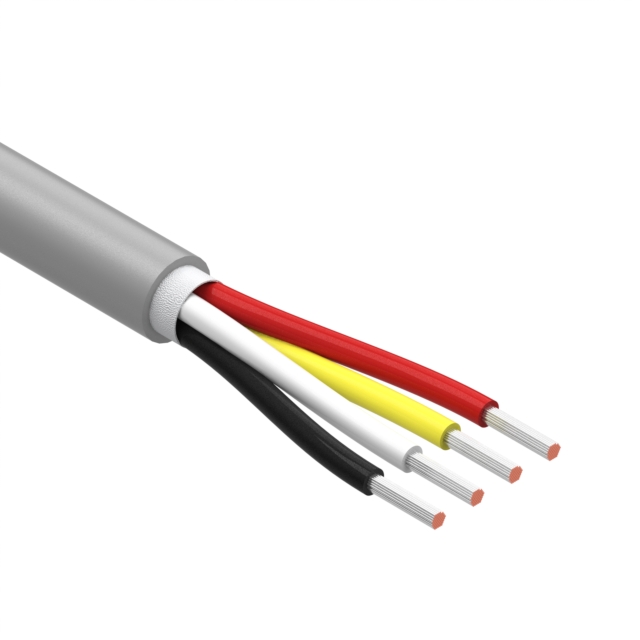

4 Conductor Multi-Conductor Cable Gray 20 AWG 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02719 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 65 |
| Conductor Strand Diameter | 0.0039 in |
| Features | Biological Compatibility |
| Jacket (Insulation) Diameter | 0.193 in |
| Jacket (Insulation) Material | Thermoplastic Polyurethane (TPU) |
| Jacket (Insulation) Thickness | 0.0236 in |
| Jacket Color | Gray |
| Length | 502 ft |
| Number of Conductors | 4 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 10993, ISO |
| Voltage | 150 V |
| Wire Gauge | 20 AWG |
