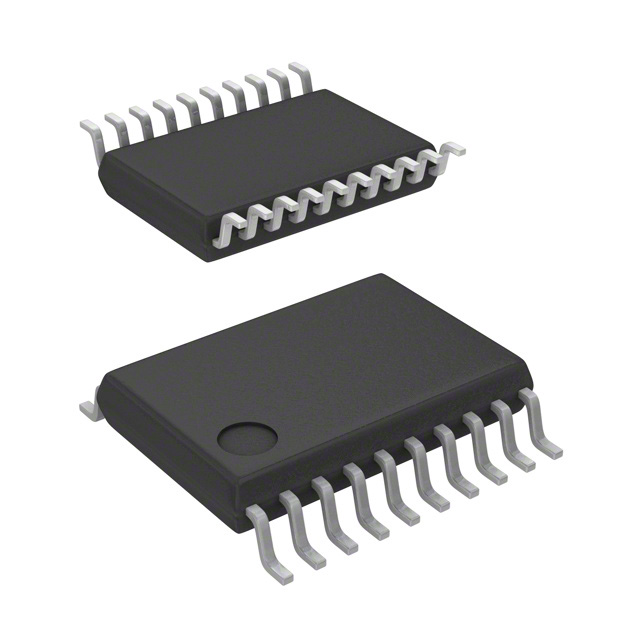

AZ75232GSTR-G1 - 20-LSSOP (0.209", 5.30mm Width)

AZ75232GSTR-G1

Active
Diodes Inc

IC TRANSCEIVER FULL 3/5 20SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+1
AZ75232GSTR-G1 - 20-LSSOP (0.209", 5.30mm Width)

AZ75232GSTR-G1

Active
Diodes Inc

IC TRANSCEIVER FULL 3/5 20SSOP

Deep-Dive with AI

DocumentsDatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationAZ75232GSTR-G1
Data Rate120 Kbps
DuplexFull
Mounting TypeSurface Mount
Number of Drivers/Receivers [custom]5
Number of Drivers/Receivers [custom]3
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / Case0.209 in, 5.3 mm
Package / Case20-LSSOP
ProtocolRS232
Receiver Hysteresis500 mV
Supplier Device Package20-SSOP
TypeTransceiver
Voltage - Supply [Max]15 V, 5.5 V
Voltage - Supply [Min]7.5 V, 4.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.60
10$ 0.52
25$ 0.48
100$ 0.38
250$ 0.36
500$ 0.30
1000$ 0.23
Digi-Reel® 1$ 0.60
10$ 0.52
25$ 0.48
100$ 0.38
250$ 0.36
500$ 0.30
1000$ 0.23
Tape & Reel (TR) 2000$ 0.21
6000$ 0.20
10000$ 0.19
50000$ 0.17

Description

General part information

AZ75232 Series

TN1.pdf
