MMF405325
ActiveMicro-Measurements (Division of Vishay Precision Group)

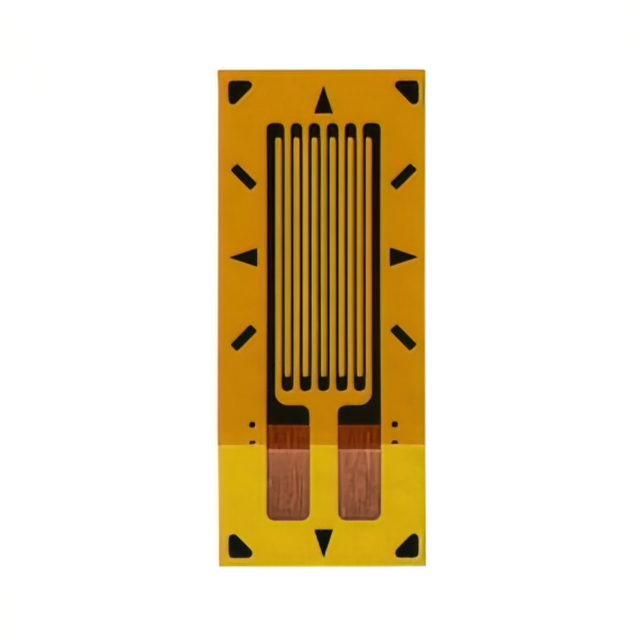

CEA-00-250UNA-350/P2 - STRAIN GA
MMF405325
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-00-250UNA-350/P2 - STRAIN GA
Description
General part information
MMF405325
Linear Strain Gauge ±5% 0.250" (6.35mm) 0.120" (3.05mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405325 |
|---|---|
| Length - Active | 0.25 in |
| Length - Overall | 0.52 in |
| Length - Overall Pattern | 0.415 in |
| Length - Overall Pattern (mm) | 10.54 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Linear |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range | 5 % |
| Width - Active | 0.12 in |
| Width - Overall | 0.22 in |
| Width - Overall Pattern | 0.12 in |
