DC0001/05-TG-A482K-0.1-0

Active

t-Global Technology

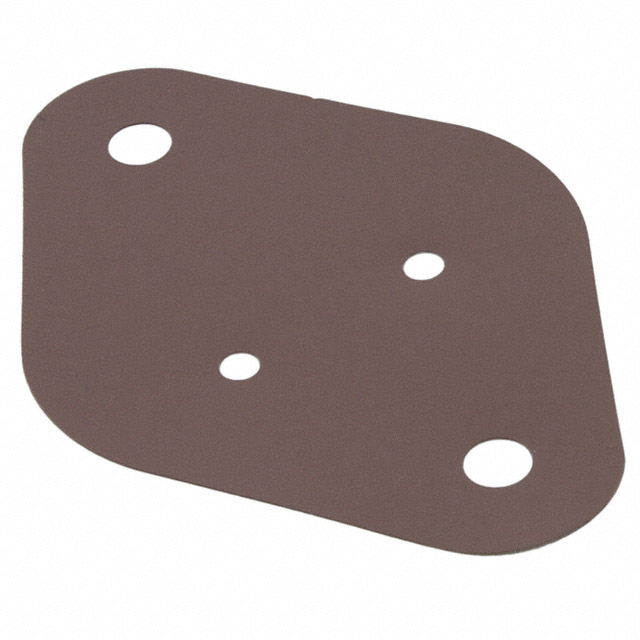

THERM PAD 41.91X28.96MM RED

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 41.91X28.96MM RED

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 41.91X28.96MM W/ADH

Part	Thermal Conductivity	Color	Usage	Shelf Life	Shape	Type	Thickness [custom]	Thickness [custom]	Adhesive	Outline [y]	Outline [x]	Material	Backing, Carrier	Thickness [x]	Thickness [x]	Shelf Life Start	Thickness	Thickness
t-Global Technology DC0001/05-TG-A373F-0.25-2A	1.4 W/m-K	Yellow	TO-3	12 Months	Rhombus	Die-Cut Pad, Sheet	0.254 mm	0.01 in	Adhesive - Both Sides	28.96 mm	41.91 mm
t-Global Technology DC0001/05-TI900-0.12-2A	1.8 W/m-K	White	TO-3	24 Months	Rhombus	Die-Cut Pad, Sheet			Adhesive - Both Sides	28.96 mm	41.91 mm	Silicone	Viscose	0.005 in	0.127 mm
t-Global Technology DC0001/05-TG-A482K-0.1-0	2.3 W/m-K	Red	TO-3	24 Months	Rhombus	Die-Cut Pad, Sheet				28.96 mm	41.91 mm	Silicone				Date of Purchase	0.1 mm	0.0039 in
t-Global Technology DC0001/05-TG-A486G-0.3-2A	6 W/m-K	Gray	TO-3	12 Months	Rhombus	Die-Cut Pad, Sheet	0.305 mm	0.012 "	Adhesive - Both Sides	28.96 mm	41.91 mm					Date of Purchase
