BTS70802EPADAUGHBRDTOBO1
ActiveInfineon Technologies
DAUGHTER BOARD, PROFET+2 12V MOTHERBOARD ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsOperating Instructions EN
BTS70802EPADAUGHBRDTOBO1
ActiveInfineon Technologies
DAUGHTER BOARD, PROFET+2 12V MOTHERBOARD ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsOperating Instructions EN
Technical Specifications
Parameters and characteristics for this part
| Specification | BTS70802EPADAUGHBRDTOBO1 |
|---|---|
| Contents | Board(s) |
| Function | Switch |
| Type | Power Management |
| Utilized IC / Part | BTS7080-2EPA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BTS70802 Series

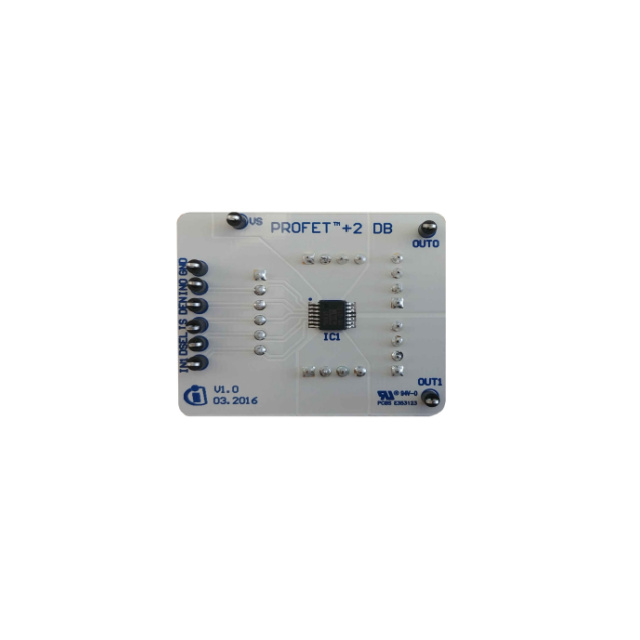

This daughterboard comes with 1 high-side switch ofBTS7080-2EPAand is compatible with the PROFET™+2 12V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daugtherboard is capable to drive typcial automotive loads.
