28R0756-200

28R0756-200

Active
Laird Technologies EMI

FERRITE CORE 140 OHM SOLID

Find alt
28R0756-200

28R0756-200

Active
Laird Technologies EMI

FERRITE CORE 140 OHM SOLID

Find alt

Description

General part information

28R0756-200

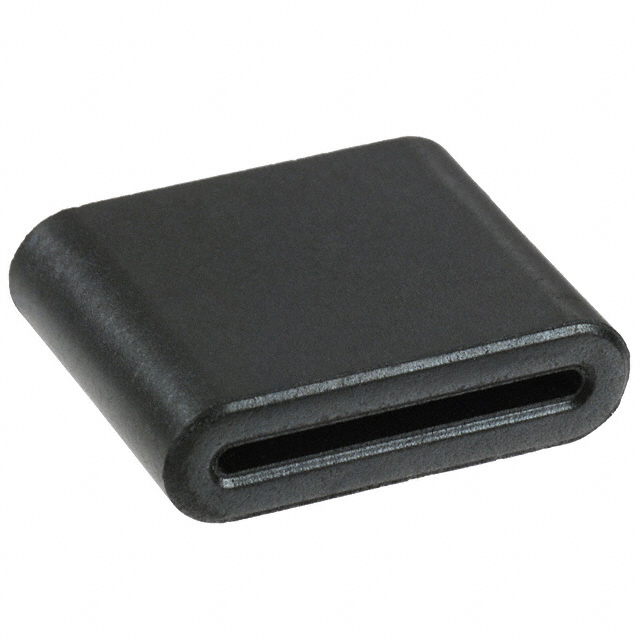

Solid Free Hanging Ferrite Core 140Ohm @ 100MHz ID 0.591" W x 0.045" H (15.00mm x 1.15mm) OD 0.756" W x 0.211" H (19.20mm x 5.35mm) Length 0.630" (16.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification28R0756-200
DesignSolid
Impedance140 Ohm
Inner Dimension Height0.045 in
Inner Dimension Width0.591 in
Length0.63 in
Material28
Material Temperature Rating28 °C
Mounting TypeFree Hanging
Outer Dimension Height0.211 in
Outer Dimension Width0.756 in
TypeFlat

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

28R0756-200 | Datasheet
