MAL209343561E3
ActiveVishay Dale

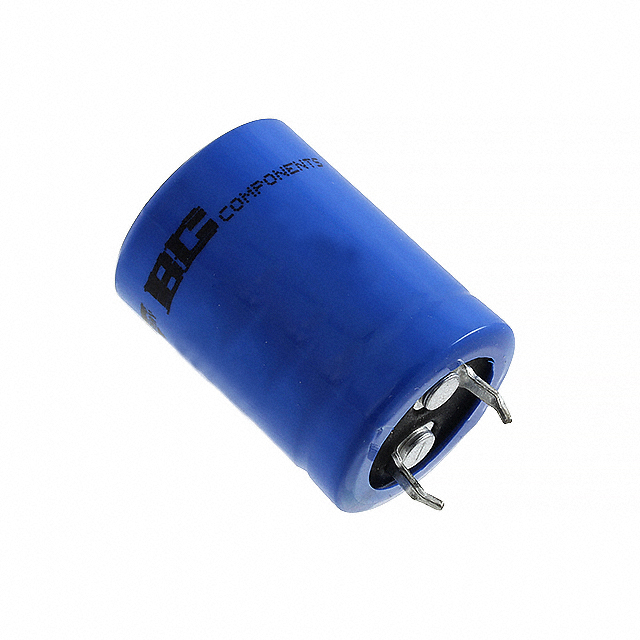

CAP ALUM 560UF 20% 250V SNAP TH
MAL209343561E3
ActiveVishay Dale
CAP ALUM 560UF 20% 250V SNAP TH
Description
General part information
MAL209343561E3
560 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 210mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL209343561E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 560 µF |
| ESR (Equivalent Series Resistance) | 210 mOhm |
| Height - Seated (Max) | 1.654 in |
| Impedance | 140 mOhms |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.11 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
