9080LBA165106
ObsoleteSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 380A
9080LBA165106
ObsoleteSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 380A
Description
General part information
9080LBA165106

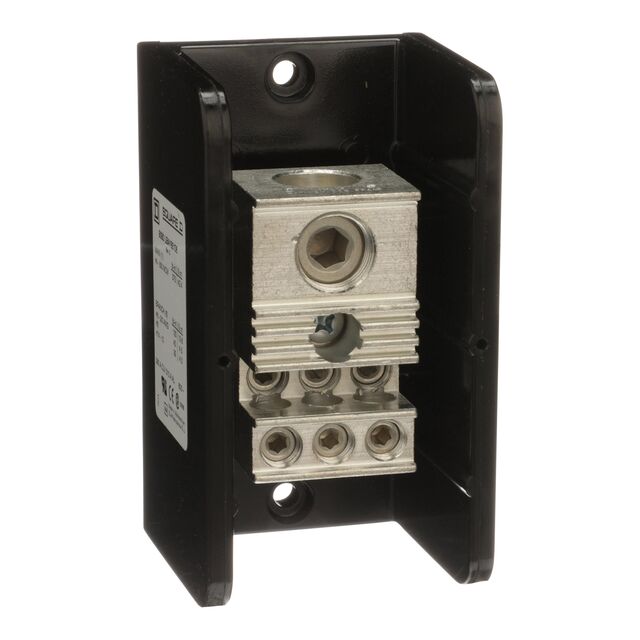

1 Pole Power Distribution Block 380 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080LBA165106 |
|---|---|
| Current Rating | 380 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Cross-sectional Area | 500 MCM |
| Line Side Wire/Stud Designation | AWG, 4 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 6 |
| Load Side Wire/Stud Size | 2/0, 14 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
