Description
General part information
BCIV-S-17-BG

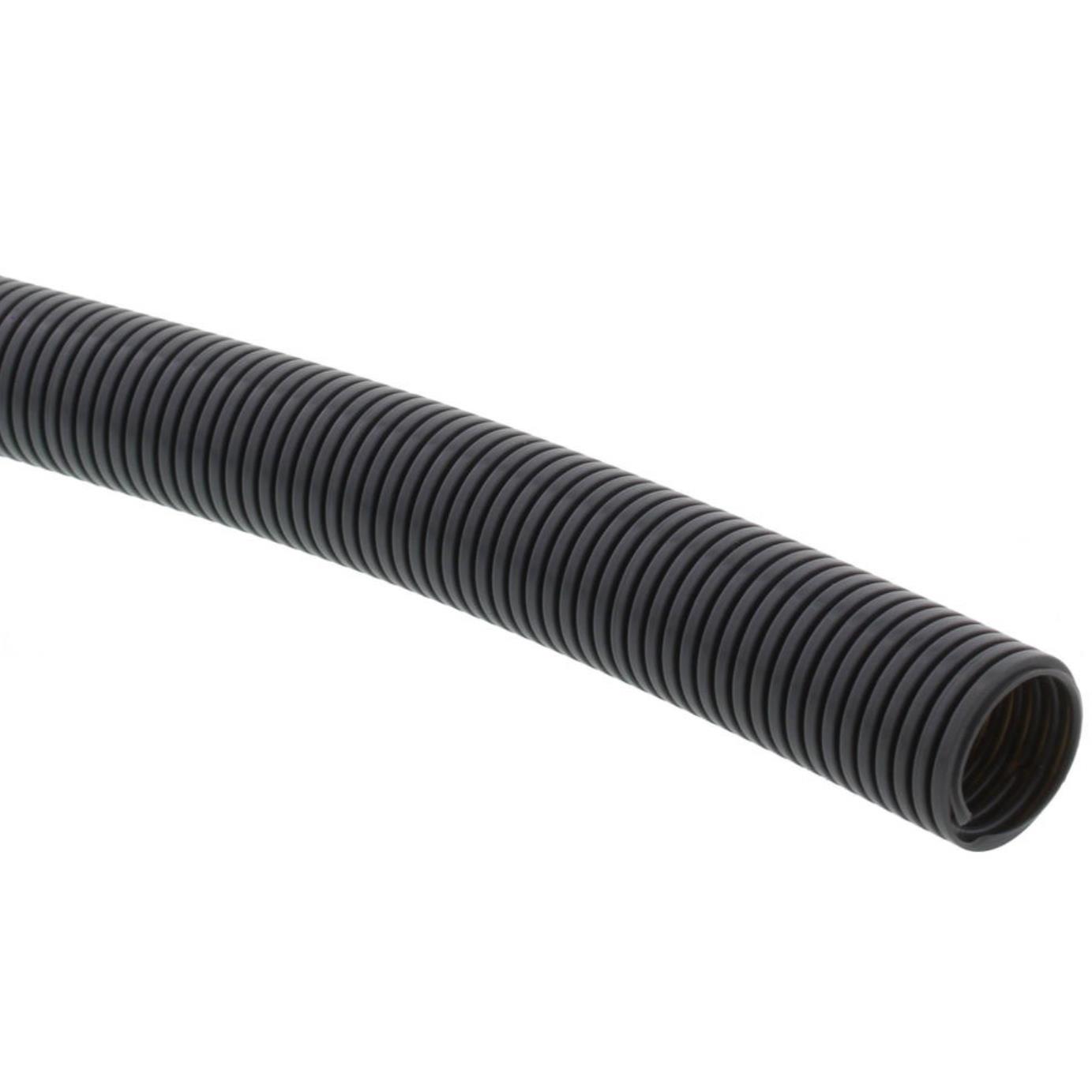

Black Polyamide (PA12), Nylon 12 Convoluted, Corrugated Wire Loom, Protective Hose 0.622" (15.80mm) 164' (50.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCIV-S-17-BG |
|---|---|
| Color | Black |
| Diameter - Inside | 0.622 in |
| Diameter - Outside | 0.827 in |
| Length | 164 ft |
| Material | Polyamide (PA12), Nylon 12 |
| Material Flammability Rating | UL94 V-2 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.012 in |
