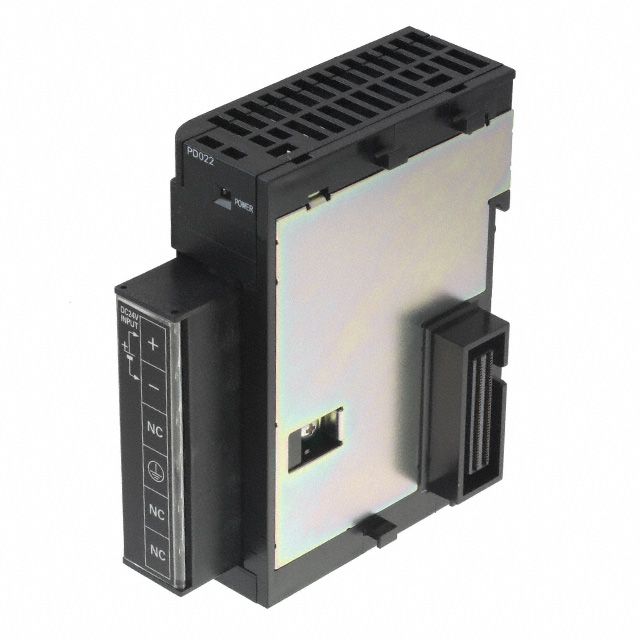

Specification	CJ1W-PD022

Approval Agency	cULus, CE
Features	Output Capacity, 19.6W), Output Capacity (5VDC, 2A
For Use With/Related Products	CJ Series
Mounting Type	DIN Rail
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Output Current	2 A
Output Power	19.6 W
Output Voltage	5 V
Termination Style	Screw Terminal
Type	Power Supply Module
Voltage - Supply	24 VDC
Weight	11 lbs

CJ1W Series

...

Part	Number of Outputs	Output Type	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Termination Style	Type	Weight	Approval Agency	For Use With/Related Products	Features	Number of Inputs	Input Types	Operating Temperature (Min)	Operating Temperature (Max)
Omron Automation and Safety CJ1W-OD212(SL)	16	Solid State	Spring Terminal	10 V	-10 V	Spring Terminal	Input Output (I/O) Module
Omron Automation and Safety CJ1W-TC003	2	Solid State	DIN Rail			Screw Terminal	Temperature Control Module	0.331 lb	CE cULus Lloyd NK	CJ Series	J K L R S T Type B	2	Analog
Omron Automation and Safety CJ1W-ECT21
Omron Automation and Safety CJ1W-CN001
Omron Automation and Safety CJ1W-NC881			DIN Rail			RJ45	Motion Control Module	0.243 lb	CE cULus	CJ Series	8-Axis Control			0 °C	55 °C
Omron Automation and Safety CJ1W-NC882			DIN Rail			RJ45	Motion Control Module	0.243 lb	CE cULus	CJ Series	8-Axis Control			0 °C	55 °C
Omron Automation and Safety CJ1W-CT021	2	Solid State	DIN Rail			Rectangular Connector	Counter Module	0.221 lb	CE cULus Lloyd NK	CJ Series		2	Digital	0 °C	55 °C
Omron Automation and Safety CJ1W-MD231	16	Solid State	DIN Rail			D-Sub	Input Output (I/O) Module	0.198 lb	CE cULus NK	CJ Series		16	Digital
Omron Automation and Safety CJ1W-TS561			DIN Rail			Screw Terminal	Input Module	0.331 lb		CJ Series		6	Analog	0 °C	55 °C
Omron Automation and Safety CJ1W-OD232	32	Solid State	DIN Rail			Rectangular Connector	Output Module	0.176 lb	CE cULus Lloyd NK	CJ Series
