ERA.1S.302.CLL

Active

LEMO

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.1S.302.CLL

Active

LEMO

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.44
		1	$ 33.99
		10	$ 28.16
		10	$ 29.46
		25	$ 25.53
		25	$ 25.99
		50	$ 23.75
		50	$ 23.26
		100	$ 22.14
		100	$ 20.39
		250	$ 20.25
		500	$ 18.97

Description

General part information

ERA.1S Series

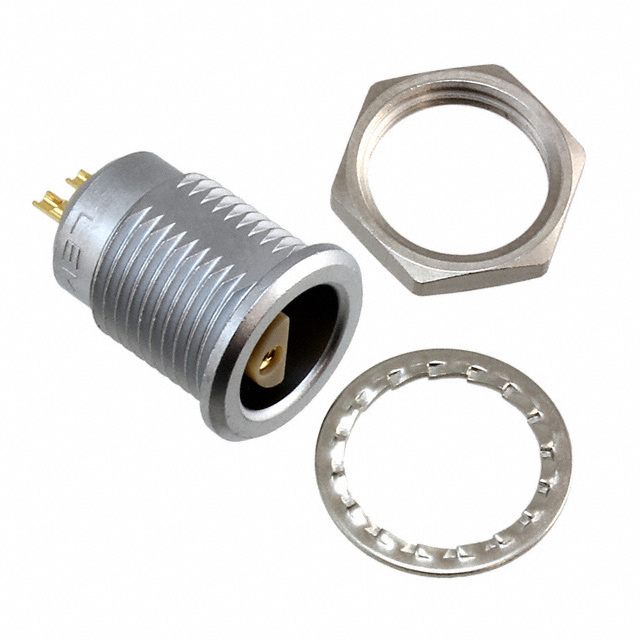

2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.1S.302.CLL	ERA.1S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174, 400, 223, 187A, 179B, RG-58C, 302, 59B
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver, Black
Connector Style	-	Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Receptacle, Female Sockets, Female Sockets, Male Pins, Receptacle, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	15 A	6 - 25 A
Dielectric Material	-	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	2	1 - 6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	120 - 405
Shield Termination	-	Solder
Shielding	Shielded	Shielded
Termination	-	Crimp

ERA.1S Series

CONN RCPT FMALE 1P GOLD SLDR CUP

Part	Ingress Protection	Orientation	Shell Material	Contact Material	Fastening Type	Shielding	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insert Material	Shell Finish	Primary Material	Contact Finish - Mating	Connector Type	Mounting Feature	Shell Size - Insert	Material Flammability Rating	Termination	Body Material	Includes	Center Contact Plating	Mating Cycles	Number of Ports	Shield Termination	Connector Style	Dielectric Material	Cable Group	Impedance	Housing Color	Contact Termination	Center Contact Material	Body Finish
LEMO ERA.1S.120.CTL	IP50	Keyed	Brass	Bronze	Push-Pull	Shielded	1	Silver	-55 °C	250 °C	18 A	Polytetrafluoroethylene (PTFE)	Chrome	Metal	Gold	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	120
LEMO ERA.1S.302.CLL	IP50	Keyed	Brass	Brass, Bronze	Push-Pull	Shielded	2	Silver	-55 °C	250 °C	15 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Female Sockets, Male Pins, Receptacle	Bulkhead - Rear Side Nut	302	UL94 V-0
LEMO ERA.1S.304.CLL	IP50	Keyed	Brass	Brass, Bronze	Push-Pull	Shielded	4	Silver	-55 °C	250 °C	10 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Female Sockets, Male Pins, Receptacle	Bulkhead - Rear Side Nut	304	UL94 V-0
LEMO ERA.1S.305.CLL	IP50	Keyed	Brass	Brass, Bronze	Push-Pull	Shielded		Silver	-55 °C	250 °C	7 A, 10 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Female Sockets, Male Pins, Receptacle	Bulkhead - Rear Side Nut	305	UL94 V-0
LEMO ERA.1S.303.CLA	IP50	Keyed	Brass	Brass, Bronze	Push-Pull	Shielded		Silver	-55 °C	250 °C	10 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Female Sockets, Male Pins, Receptacle	Bulkhead - Rear Side Nut	303	UL94 V-0
LEMO ERA.1S.408.CLL	IP50	Keyed	Brass	Bronze	Push-Pull	Shielded	1	Silver	-55 °C	250 °C	6 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Receptacle, Female Sockets	Bulkhead - Rear Side Nut		UL94 V-0
LEMO ERA.1S.405.CTL	IP50	Keyed	Brass	Bronze	Push-Pull	Shielded	1	Silver	-55 °C	250 °C	8 A	Polytetrafluoroethylene (PTFE)	Chrome	Metal	Gold	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	405
LEMO ERA.1S.302.CYM	IP50	Keyed	Brass	Brass, Bronze	Push-Pull	Shielded	2	Silver	-55 °C	250 °C	15 A	Polyetheretherketone (PEEK)	Chrome	Metal	Gold	Female Sockets, Male Pins, Receptacle	Bulkhead - Rear Side Nut	302	UL94 V-0	Crimp
LEMO ERA.1S.250.CLL	IP50				Push-Pull				-55 °C	250 °C						Female Socket, Receptacle	Bulkhead - Rear Side Nut				Brass	1 Connector, 1 Lockwasher, 1 Nut	Gold	1000	1	Solder	Coaxial	Polyetheretherketone (PEEK)	174, 174A, 178B, 188A, 196A, 316B, RG-122	50 Ohms	Silver	Solder Cup	Beryllium Copper	Chrome
LEMO ERA.1S.275.CLL	IP50				Push-Pull				-55 °C	250 °C						Female Socket, Receptacle	Bulkhead - Rear Side Nut				Brass	1 Connector, 1 Lockwasher, 1 Nut	Gold	1000		Solder	Coaxial	Polyetheretherketone (PEEK)	179B, 187A, 223, 302, 400, 59B, RG-58C	75 Ohms	Silver	Solder Cup	Beryllium Copper	Chrome
