HSB12-272706
ActiveSame Sky (Formerly CUI Devices)

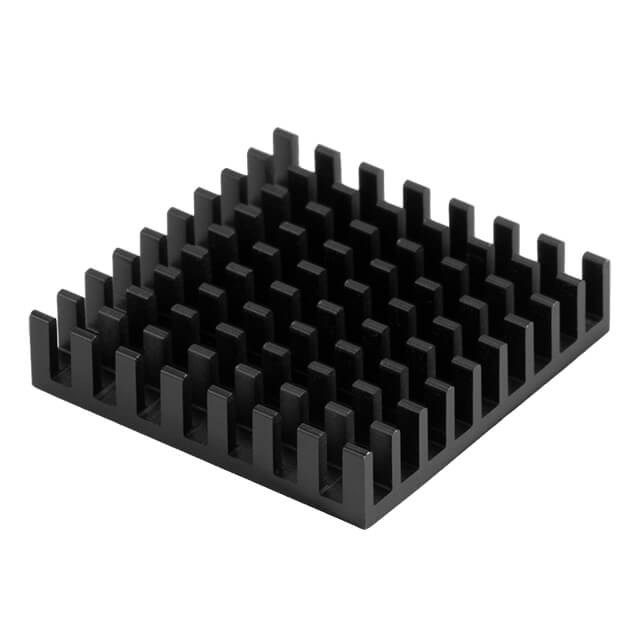

HEATSINK: EXTRUDED; GRILLED; BLACK; L: 27MM; W: 27MM; H: 6MM; ANODIZED
HSB12-272706
ActiveSame Sky (Formerly CUI Devices)
HEATSINK: EXTRUDED; GRILLED; BLACK; L: 27MM; W: 27MM; H: 6MM; ANODIZED
Description
General part information
HSB12-272706
Heat Sink BGA Aluminum Alloy 3.8W @ 75°C Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HSB12-272706 |
|---|---|
| Attachment Method | Adhesive (Not Included) |
| Fin Height | 0.236 in |
| Length | 1.063 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Power Dissipation | 3.8 W |
| Shape | Square, Pin Fins |
| Thermal Resistance | 19.59 °C/W, 7.8 °C/W |
| Type | Top Mount |
| Width | 1.063 in |
