FMCA1881-150CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMAPLUG 59.0
FMCA1881-150CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMAPLUG 59.0
Description
General part information
FMCA1881-150CM

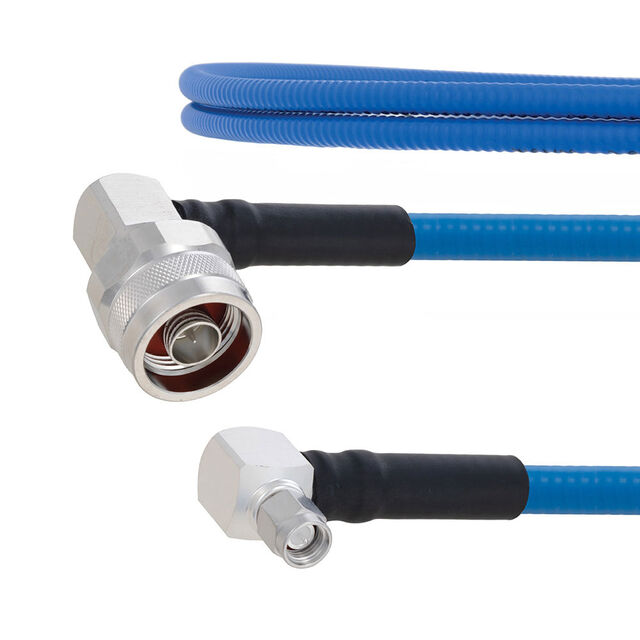

Cable Assembly Coaxial SMA to N-Type SPP-250LLPL 59.1" (1.5m) 4.9'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1881-150CM |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
