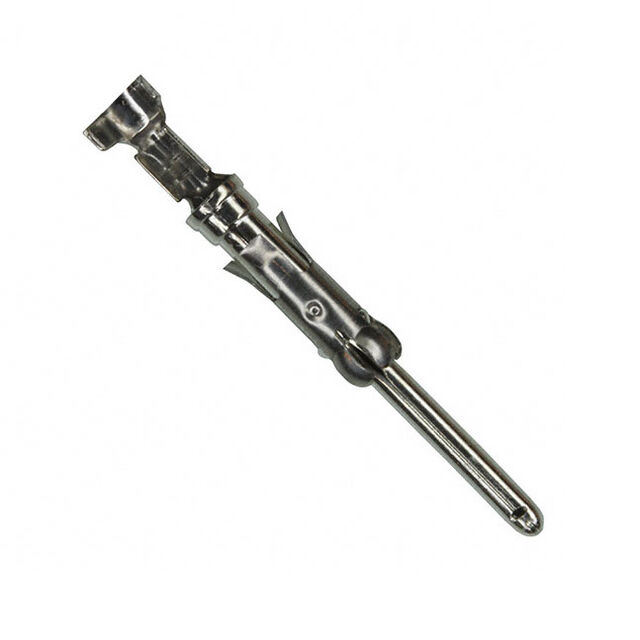

1-66332-4
ActiveTE Connectivity AMP Connectors
CIRCULAR CONNECTOR CONTACT, PIN, 24 AWG, 20 AWG, CRIMP, TIN PLATED CONTACTS ROHS COMPLIANT: YES
1-66332-4
ActiveTE Connectivity AMP Connectors
CIRCULAR CONNECTOR CONTACT, PIN, 24 AWG, 20 AWG, CRIMP, TIN PLATED CONTACTS ROHS COMPLIANT: YES
Description
General part information
AMP Type III+ Series
Pin Contact, Tin (Sn), Spring Contact Retention, Size 16 Contact Size, Discrete Wire, 24 – 20 AWG, .2 – .6 mm² Wire, Crimp, Brass, AMP Type III+
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-66332-4 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 50 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
