Specification	LCM3000W-T

Applications	ITE (Commercial), Medical
Approval Agency	TUV, CB, CE
Current - Output 1	62.5 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Remote Sense, PMBus™
Minimum Load Required	No
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	3000 W
Size / Dimension Height	2.5 in
Size / Dimension Length	10.9 in
Size / Dimension Width	7 in
Standard Number	60950-1, 62368-1, 60601-1
Type	Front End
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

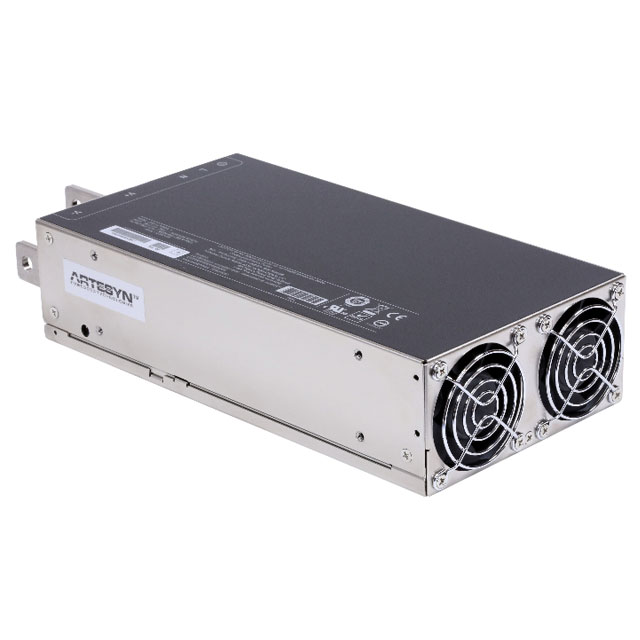

LCM3000 Series

Artesyn Embedded Technologies

Part	Voltage - Output 1	Minimum Load Required	Mounting Type	Number of Outputs	Features	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Current - Output 1	Type	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Voltage - Isolation	Efficiency
ARTESYN / Advanced Energy LCM300N-T	12 V 15 V	No	Chassis Mount	1	Adjustable Output Load Sharing PFC Remote On/Off Universal Input	4 in	7 in	1.61 in	90 V	264 V	310 W	20 A	Front End	CB	70 °C	-40 °C	ITE (Commercial) Medical	4000 Vpk	91 %
ARTESYN / Advanced Energy LCM300Q-T-1	24 V	No	Chassis Mount	1	Adjustable Output Load Sharing PFC Remote On/Off Universal Input	4 in	7 in	1.61 in	90 V	264 V	310 W	12.5 A	Front End	CB	70 °C	-40 °C	ITE (Commercial) Medical	4000 Vpk	91 %
ARTESYN / Advanced Energy LCM300W-T-4	48 V	No	Chassis Mount	1	Adjustable Output Load Sharing PFC Remote On/Off Universal Input	4 in	7 in	1.61 in	90 V	264 V	310 W	6.3 A	Front End	CB	70 °C	-40 °C	ITE (Commercial) Medical	4000 Vpk	91 %
