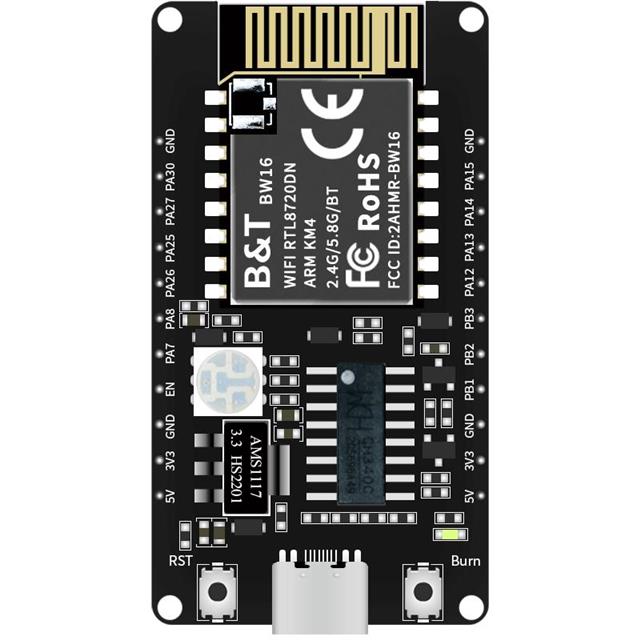

BW16-KIT
ActiveAi-Thinker
2.4G/5G WIFI MODULE + BLUETOOTH
BW16-KIT
ActiveAi-Thinker
2.4G/5G WIFI MODULE + BLUETOOTH
Description
General part information
BW16-KIT
- BW16 Transceiver; 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE) 2.4GHz ~ 2.4835GHz, 5.18GHz ~ 5.825GHz Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | BW16-KIT |
|---|---|
| For Use With/Related Products | BW16 |
| Frequency Range 1 (Max) | 2.4835 GHz |
| Frequency Range 1 (Min) | 2.4 GHz |
| Frequency Range 2 (Max) | 5.825 GHz |
| Frequency Range 2 (Min) | 5.18 GHz |
| Supplied Contents | Board(s) |
| Type | Bluetooth® 5.x (BLE), WiFi, WLAN), Transceiver, 802.11 a/b/g/n (Wi-Fi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
