1274568-3
ActiveTE Connectivity AMP Connectors

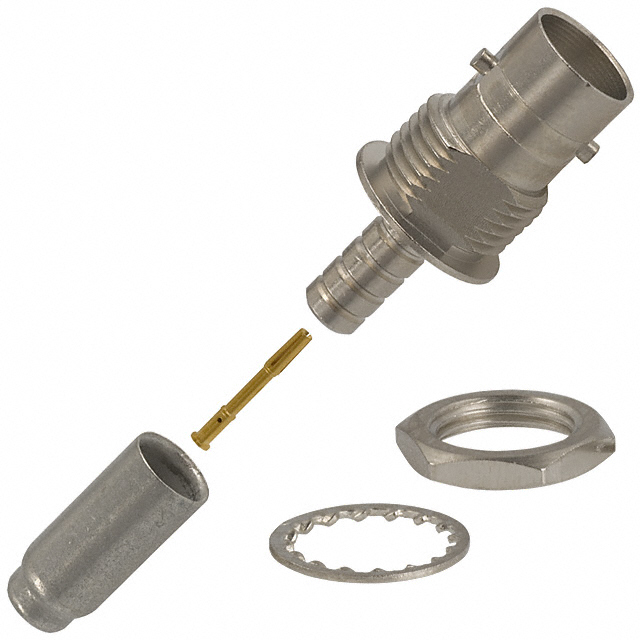

CONN MINI BNC JCK STR 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1274568-3
ActiveTE Connectivity AMP Connectors
CONN MINI BNC JCK STR 75 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1274568-3 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-179 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | Mini, BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1274568 Series
CONN MINI BNC JCK STR 75 OHM
| Part | Center Contact Material | Impedance | Body Material | Connector Type | Center Contact Plating | Dielectric Material | Connector Style | Body Finish | Mating Cycles | Mounting Feature | Includes | Cable Group | Fastening Type | Shield Termination | Housing Color | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Voltage Rating | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1274568-3 | Phosphor Bronze | 75 Ohms | Brass | Female Socket, Jack | Gold | Polytetrafluoroethylene (PTFE) | BNC, Mini | Nickel | 500 | Bulkhead - Front Side Nut | 1 Connector, 1 Contact, 1 Ferrule | RG-179 | Bayonet Lock | Crimp | Silver | 2 GHz | 85 °C | -40 °C | 1 | 300 VDC | Crimp |
Description
General part information
1274568 Series
BNC, Mini Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
