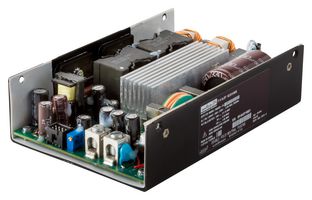

PQU650-28P
ActiveMurata Electronics
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 650W @ 300LFM, 450 W, 90V AC TO 264V AC
PQU650-28P
ActiveMurata Electronics
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 650W @ 300LFM, 450 W, 90V AC TO 264V AC
Description
General part information
PQU650-28P
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 650W @ 300LFM, 450 W, 90V AC TO 264V AC
Technical Specifications
Parameters and characteristics for this part
| Specification | PQU650-28P |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CCC, cCSAus, CE, cTUVus, CB, TUV |
| Current - Output 1 | 23.2 A |
| Efficiency | 95 % |
| Features | Standby Output, Load Sharing, Adjustable Output, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 650 W |
| Size / Dimension Height | 1.57 in |
| Size / Dimension Length | 6 in |
| Size / Dimension Width | 4 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 28 V |
