Z35092231509J6BC04
ActiveVishay Dale

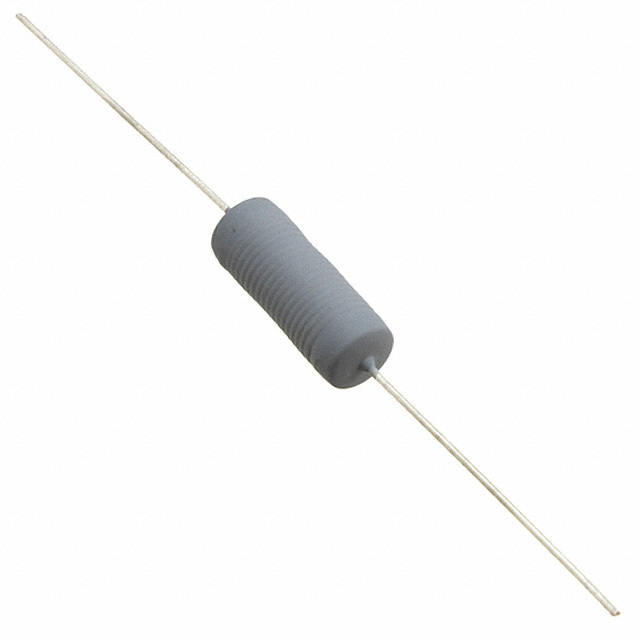

RES 15 OHM 6W 5% AXIAL
Z35092231509J6BC04
ActiveVishay Dale
RES 15 OHM 6W 5% AXIAL
Description
General part information
Z35092231509J6BC04
15 Ohms ±5% 6W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | Z35092231509J6BC04 |
|---|---|
| Composition | Wirewound |
| Features | High Voltage, Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 6 W |
| Resistance | 15 Ohm |
| Size / Dimension Diameter | 0.343 in |
| Size / Dimension Length | 0.878 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
