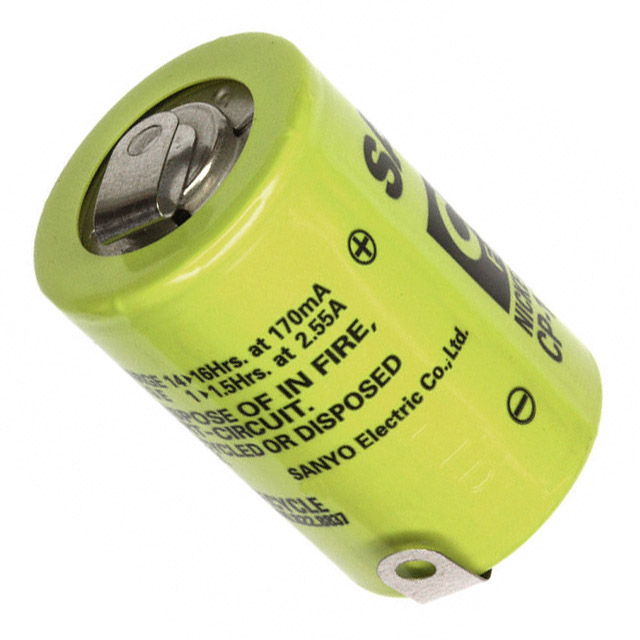

CP-1700SCRT
ObsoletePanasonic Energy
BATTERY NICAD 1.2V 1.7AH 4/5SC
CP-1700SCRT
ObsoletePanasonic Energy
BATTERY NICAD 1.2V 1.7AH 4/5SC
Description
General part information
CP-1700SCRT
4/5SC 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 1.7Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | CP-1700SCRT |
|---|---|
| Battery Cell Size | 4/5SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 1.7 Ah |
| Discharge Rate (Current) | 340 mA |
| Standard Charge Current | 170 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Solder Tab |
| Voltage - Rated | 1.2 VAC |
| Weight | 45.81 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
