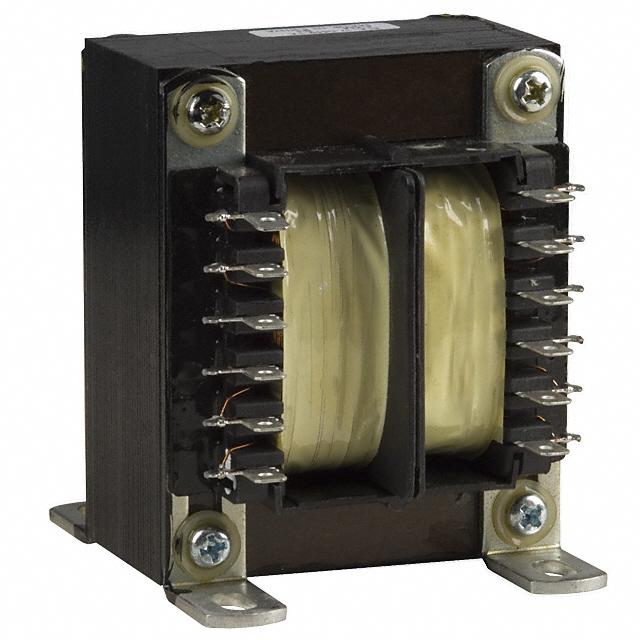

VPS12-10300-B
PWR XFMR LAMINATED 130VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | VPS12-10300-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 26 A |
| Current - Output (Max) Series | 13 A |
| Height - Seated (Max) | 85.85 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 130 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 71.37 mm |
| Size / Dimension Width | 68.33 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 6.3 V |
| Voltage - Secondary (Full Load) (Series) | 12.6 V |
| Weight | 4.1 lbs |
