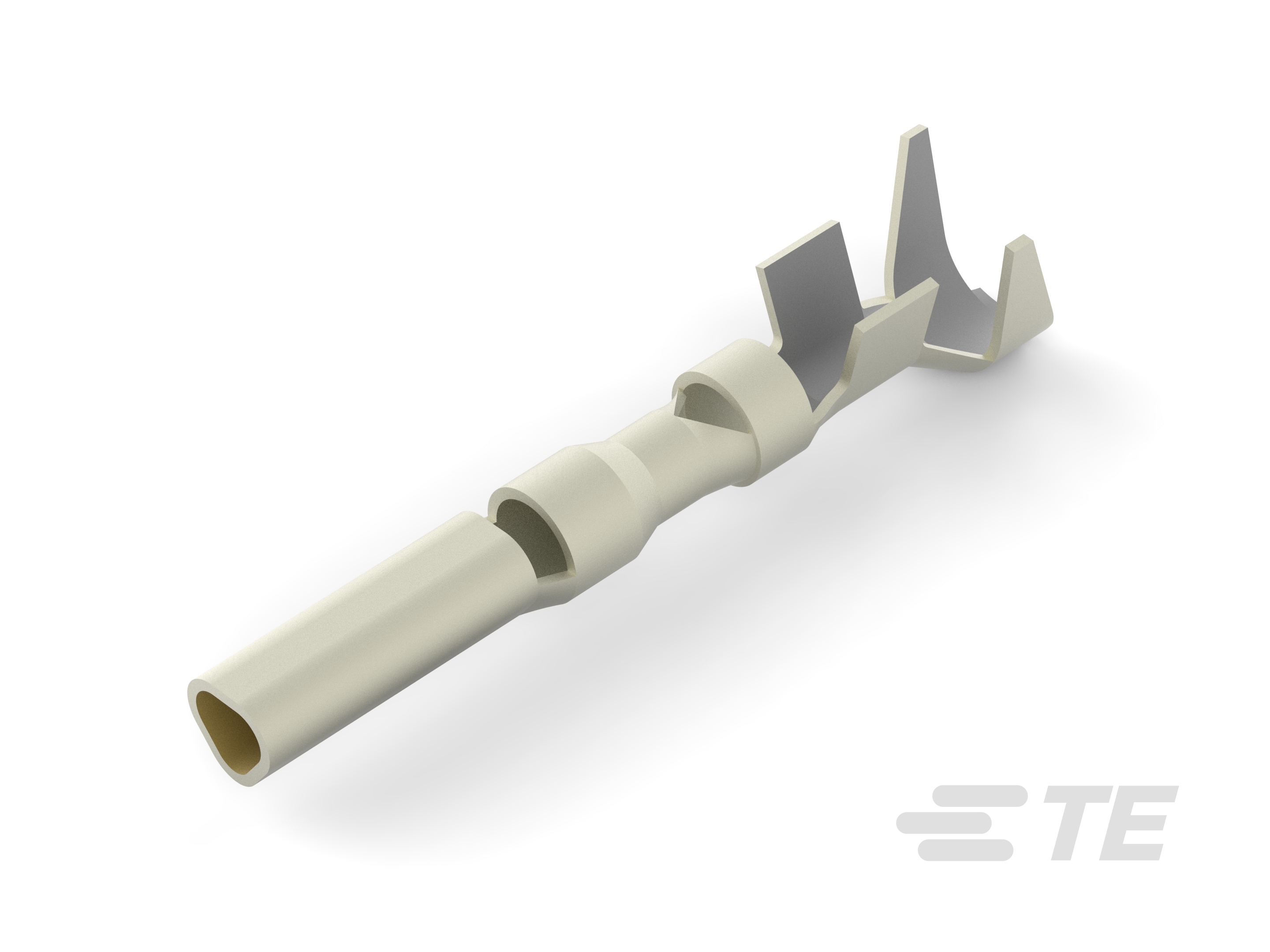

Specification	1-794231-0

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge (AWG) (Max)	20.5 AWG
Wire Gauge (AWG) (Min)	16 AWG

Mini-Universal MATE-N-LOK 2 Series

Part	Contact Finish	Pin or Socket	Contact Termination	Contact Finish Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Fastening Type	Mounting Type	Contact Type	Insulation Material	Connector Type	Number of Positions	Color	Row Spacing	Pitch	Number of Rows	Note
TE Connectivity AMP Connectors 1-794226-0	Gold	Pin	Crimp	30 µin	26 AWG	22 AWG
TE Connectivity AMP Connectors 1-794219-0	Gold	Socket	Crimp	30 µin	26 AWG	22 AWG
TE Connectivity AMP Connectors 794210-1			Crimp				Latch Lock	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Plug	20	Natural	0.163 in	0.163 in	2	Contacts Not Included
TE Connectivity AMP Connectors 794207-1			Crimp				Locking Ramp	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Receptacle	16	Natural	0.163 in	0.163 in	2	Contacts Not Included
TE Connectivity AMP Connectors 794218-1	Tin	Pin	Crimp		25 AWG	22 AWG
TE Connectivity AMP Connectors 794205-1			Crimp				Locking Ramp	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Receptacle	15	Natural	0.163 in	0.163 in	3	Contacts Not Included
TE Connectivity AMP Connectors 1-794220-0	Gold	Pin	Crimp	30 µin	22 AWG	18 AWG
TE Connectivity AMP Connectors 794213-1			Crimp				Locking Ramp	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Receptacle	22	Natural	0.163 in	0.163 in	2	Contacts Not Included
TE Connectivity AMP Connectors 794193-1			Crimp				Locking Ramp	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Receptacle	8	Natural	0.163 in	0.163 in	2
TE Connectivity AMP Connectors 794197-1			Crimp				Locking Ramp	Free Hanging (In-Line)	Female Male Male or Female	Nylon Polyamide (PA)	Receptacle	10	Natural	0.163 in	0.163 in	2
