ES-2011-T121

Active

TE Connectivity AMP Connectors

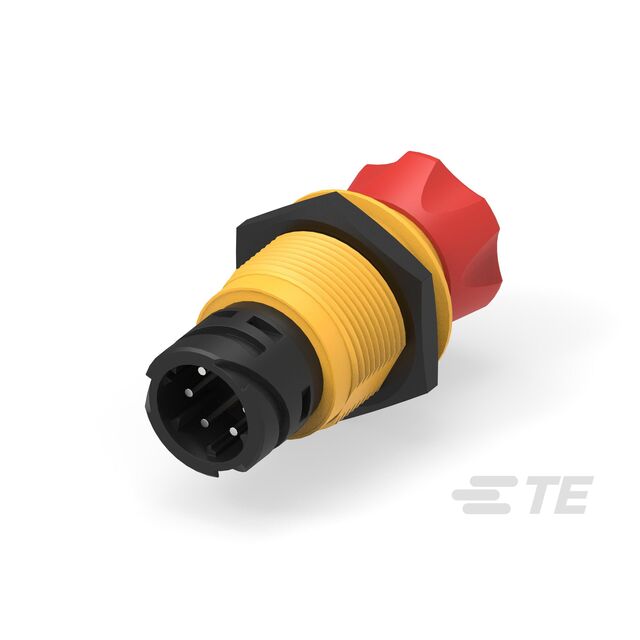

SWITCH ESTOP TWIST RESET 10A 32V

Find alt

Alpha

ES-2011-T121

Active

TE Connectivity AMP Connectors

SWITCH ESTOP TWIST RESET 10A 32V

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

KISSLING Series ES Series

Emergency Stop Switch, Single Actuator, Flush Actuator, Illuminated, Process Sealed, Snap Action, Non-Tactile Feedback, Maintained, KISSLING Series ES

Technical Specifications

Parameters and characteristics for this part

Specification	ES-2011-T121

Circuit	DPST-NO/NC
Current Rating	10 A
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	30.5 mm
Panel Cutout Shape	Circular
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Connector
Voltage Rating - DC	32 V

KISSLING Series ES Series

Part	Accessory Type	For Use With/Related Products	Reset Operation	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Circuit	Voltage Rating - DC	Current Rating	Quick Connect Size (0.110")
TE Connectivity AMP Connectors 24-63-029	E-Stop Shroud	ES Series
TE Connectivity AMP Connectors ES-2011-T321-030C 907			Twist	Off-On On-Off	-40 °C	85 °C	Wire Leads with Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	DPST-NO/NC	32 V	10 A
TE Connectivity AMP Connectors ES-2012-T211			Twist	Off-On On-Off	-40 °C	85 °C	Quick Connect	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	3PST-2NC/1NO	32 V	10 A	0.11 in
TE Connectivity AMP Connectors ES-2012-T311-020C			Twist	Off-On On-Off	-40 °C	85 °C	Wire Leads with Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	3PST-2NC/1NO	32 V	10 A
TE Connectivity AMP Connectors ES-2200-T311-020C			Twist	On-On	-40 °C	85 °C	Wire Leads with Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	3PDT	32 V	8 A
TE Connectivity AMP Connectors ES-2021-T111			Twist	Off-On On-Off	-40 °C	85 °C	Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	3PST-2NO/1NC	32 V	10 A
TE Connectivity AMP Connectors ES-2011-A412-020			Twist	Off-On On-Off	-40 °C	85 °C	Wire Leads	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	DPST-NO/NC	32 V	10 A
TE Connectivity AMP Connectors ES-2011-T311-018A			Twist	Off-On On-Off	-40 °C	85 °C	Wire Leads with Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	DPST-NO/NC	32 V	10 A
TE Connectivity AMP Connectors ES-2012-T111			Twist	Off-On On-Off	-40 °C	85 °C	Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	3PST-2NC/1NO	32 V	10 A
TE Connectivity AMP Connectors ES-2002-T121			Twist	On-On	-40 °C	85 °C	Connector	30.5 mm	Circular	IP67 IP69K	Dust Tight Water Resistant Waterproof	Front Panel Mount	DPDT	32 V	10 A
