Description

General part information

ZB5AH033

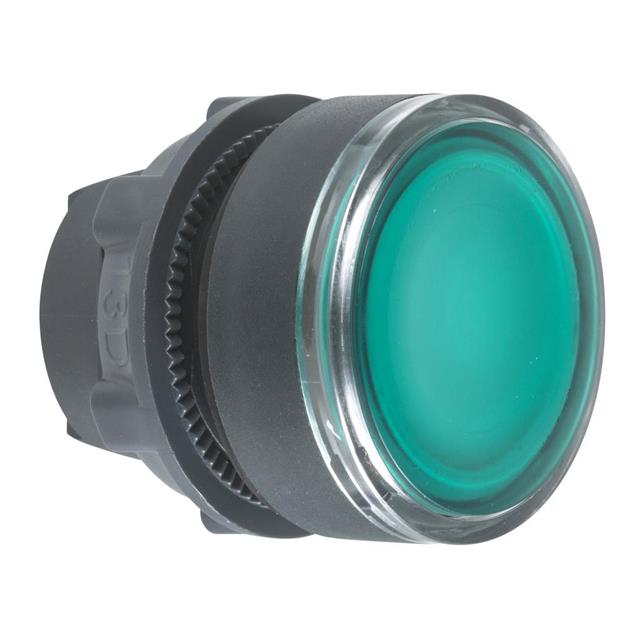

ZB5AH033 is a head for an illuminated pushbutton. This illuminated green flush button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66. This makes it ideal for operation in harsh environments. It has standards like EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-5-1, JIS C8201-1. It is certified by LROS (Lloyds register of shipping). CSA, UL listed, BV, DNV, GL. This device also has IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653 IP degree of protection.

Technical Specifications

Parameters and characteristics for this part

SpecificationZB5AH033
Actuator TypePushbutton, Round
Compatible SeriesHarmony XB5, Schneider
IlluminationIlluminated
Panel Cutout Dimension22 mm
Panel Cutout ShapeRound
RequiresIllumination Source, Contact Block(s)
TypeMaintained
