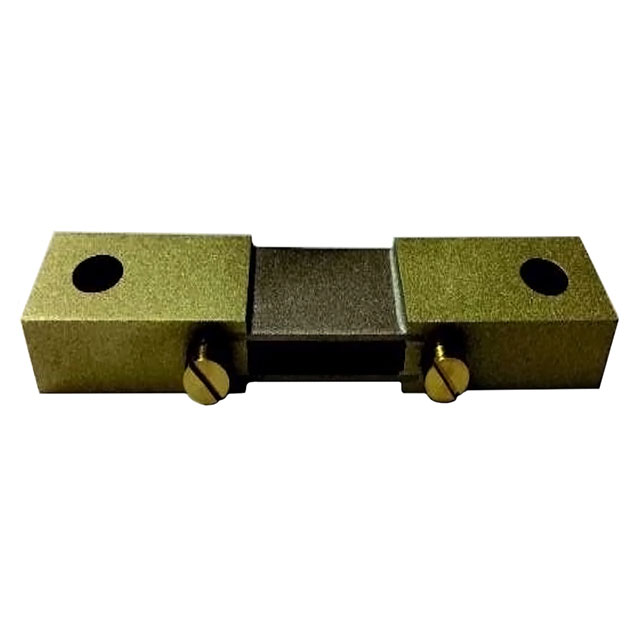

RSH-400-100
ActiveBourns Inc.
RES CHAS MNT 250 UOHM 0.25%
RSH-400-100
ActiveBourns Inc.
RES CHAS MNT 250 UOHM 0.25%
Description
General part information
RSH-400-100
250 µOhms ±0.25% Metal Element Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RSH-400-100 |
|---|---|
| Composition | Metal Element |
| Features | Safety, Pulse Withstanding, Current Sense, Non-Inductive, Flame Proof |
| Height - Seated (Max) | 0.78 in |
| Lead Style | 4-Terminal |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 30 °C |
| Package / Case | Rectangular Case - Open |
| Resistance | 0.25 mOhms |
| Size / Dimension Length | 4.5 in |
| Size / Dimension Width | 1.25 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.25 % |
